SKU: 8716065415674 | Brand: Atlona

SKU: 8716065415674 | Brand: Atlona

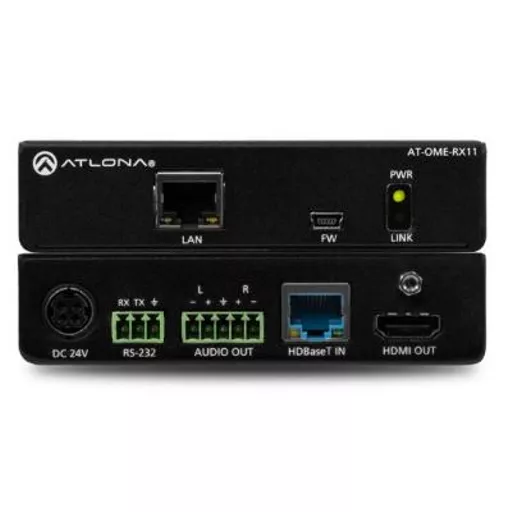

Atlona Technologies AT-OME-RX11 HDBaseT receiver

Order Before 4pm for Next Working Day Delivery*

£459.30  Excl VAT £551.16  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



AT-OME-RX11

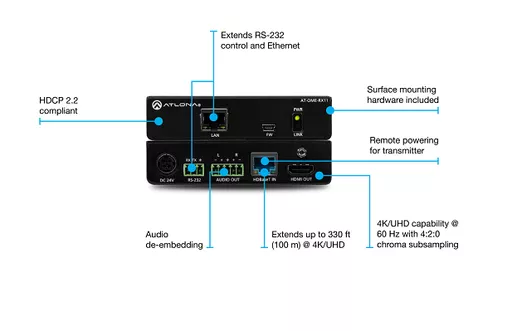

• HDBaseTTM receiver for HDMI®, Ethernet, power, and control
• 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
• HDCP 2.2 compliant
• Local AC powering – PoE (Power over Ethernet) source
• Audio de-embedding

The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally, this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered, and can deliver Power over Ethernet (PoE) over HDBaseT to an Atlona Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter.

The OME-RX11 incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation applications. The Ethernet port on the OME-RX11 is for IP pass-through with the transmitter.

Applications

• Complete system integration – The OME-RX11 and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
• Video conferencing and interactive displays – The OME-RX11 offers a new option for legacy Atlona transmitters and switchers with HDBaseT outputs, to provide audio de-embedding for feeding into an amplifier and speakers.

Technical Features

Video, audio, power, and data over category cable utilizing HDBaseT technology

• Receives up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

• Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
• Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players

HDCP 2.2 compliant

• Adheres to latest specification for High-bandwidth Digital Content Protection*
• Allows protected content stream to pass between authenticated devices
• * HDBaseT transmitter or switcher must also be HDCP 2.2 compliant.

Local AC powering – PoE (Power over Ethernet) source

• Supplies industry standard IEEE 802.3af PoE over HDBaseT to an Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter
• Allows convenient transmitter installation at any remote location, without the need for local AC power

Audio de-embedding

• De-embeds two channel PCM audio to a balanced, analog audio output
• Deliver audio to an amplifier and speakers for sound reinforcement

Multi-channel audio compliant

• Passes through multi-channel audio formats
• Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®

Field-updatable firmware

• Device can be updated in the field via the USB port

Front panel power and signal status LEDs

• LED indicators provide power and HDBaseT link status information
• Provides convenient setup and troubleshooting

Low-profile, 1.02 inch (26 mm) high enclosure

• Easy installation into confined spaces below tables, in furniture, and behind or above displays

Included accessories

• Installation guide, surface mounting hardware, and external universal power supply

Award-winning 10 year limited product warranty

• Ensures long-term product reliability and performance in commercial and residential systems
• Specify, purchase, and install with confidence
