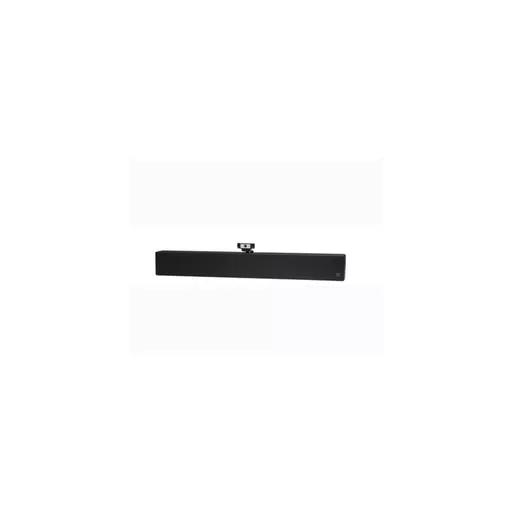

Neets Collabo VC Sound Bar

Ready. Set. Collaborate!

Quick start – no delays, no stress

Bring your laptop to the meeting room and get started right away. All you need to do is connect your laptop to Collabo with a USB cable – and you’re ready for your video call!

Voice enhanced audio

The built-in speakers in Collabo have voice enhancing technology that provide excellent sound quality in a video call. Two noise-cancelling, omni directional mics capture sound from any direction, ensuring everyone in a meeting can communicate easily, no matter where they’re sitting.

Wide field of view in HD

Video conferencing with Collabo is the next best thing to a having face-to-face meeting. The Logitech© camera records super sharp video, no matter the lighting conditions. 1080p HD resolution, 90-degree field of view and 4x digital zoom ensures a high-quality image where everyone in the meeting is clearly visible.

Works with any set up

You are completely free to choose the software and hardware you want in your meeting room. Collabo is compatible with any kind of videoconferencing software and every kind of display, no matter the brand. The USB connection ensures that you can bring any kind of laptop to the meeting.

Easy and flexible installation

Collabo is designed to fit anywhere and in any kind of meeting space. It comes with its own wall brackets and drilling template, so that you can easily mount it under your display. Alternatively, you can attach the included rubber feet and place Collabo on a table or a shelf.

Features:

• 2.0 full-range stereo front speaker system
  The 2.0 full-range stereo front speaker system offers a massive improvement to the sound quality when compared to the rear-facing speakers you typically find in displays.
• Amplifier with built-in DSP function
  Amplifier with built-in DSP functionality specifically enhances voice in video calls
• 1080p HD, 90 degree webcam
  Webcam with 1080p HD resolution, a wide 90-degree field of view, pan tilt and 4x digital zoom offers superior quality video for business use
• 2 noise-cancelling microphones
  2 noise-cancelling omnidirectional microphones ensure that everyone in the room is heard clearly.

USB-A connector
A universally compatible USB-A connector that transfers sound and images from your laptop to Collabo and your display.

Specification:

Sound Bar– Neets Sound Bar SB – 1
MDF wooden enclosure with matte black vinyl finish
Front grille textile covered MDF

Audio output
Output power 4 x 20 Wrms
THD+N < 0.1 % @ 1 W
Woofer 2 x 4” dual magnet sandwich membrane with rubber surround
Tweeter 2 x 1” soft dome
Frequency Response 50 Hz - 20 kHz +/- 3 dB
Maximum SPL 106 dB SPL @ 1m

On/Off
Auto On/Off Yes

Power input for Sound Bar
Input voltage 24 VDC
Max power usage 50 W
Standby power usage < 0.5 W
Connector 5,5 mm DC plug

Power adaptor for Sound Bar
Line voltage 100 VAC – 240 VAC
Line current max 1.5 A
Line frequency 50 Hz – 60 Hz
Output voltage 24V
Max output current 2.5A

Webcam – Logitech C930E
90-degree field of view
Full HD1080p (1920 x 1080 pixels)
720p HD (1280 x 720 pixels)
4 x digital zoom
H.264 video compression
Premium glass lens with autofocus
2 noise cancelling, omnidirectional microphones
RightLight™ 2 technology to deliver sharp images no matter the lighting conditions
Hi-speed USB 2.0 certified (also compatible with USB 3.0)
External privacy shutter for glass lens

HP 3005pr port expander
USB port expanding feature HP 3005pr
DisplayLink technology inside
Extends one USB cable to screen, camera and speakers
Supports Apple OS (MAC requires installation of additional drivers)

Power input for HP 3005pr port expander
Input voltage 19.5 VDC
Max power usage 65 W
Standby power usage < 0.5 W
Connector DC plug

Power adaptor for HP 3005pr port expander
Line voltage 100 VAC – 240 VAC
Line current max 1.7 A
Line frequency 50 Hz – 60 Hz
Output voltage 19.5V
Max output current 3.33A

General
Width 1018 mm / 40.1 inch
Depth 116 mm / 2.95 inch
Height without camera 130 mm / 5.1 inch
Height with camera 183 mm / 5.1 inch
Weight 6.5 Kg
Shipping width 1120 mm / 44.1 inch
Shipping depth 150 mm / 5.9 Inch
Shipping height 200 mm / 7.8 Inch
Shipping weight 8.5 Kg
VESA Mounting - Compatible with VESA 400 and VESA 800 for mounting on carts and stands
Storage temperature -20 °C to 50 °C
Storage moisture Non condensing

Part no: 312-0050

Included in the box
Collabo by Neets product
Web camera
5 Meter USB cable for laptop
USB-A to USB-C adaptor
2 Meter HDMI cable for screen
Bracket and screws for wall-mounting of Collabo by Neets
Rubber feet for shelf-mounting of Collabo by Neets
Bracket and screws for camera mounting
