BenQ BH2801N Bar-type Stretch Digital Signage - Smart Signage with X-Sign
For retail operators that want to optimize shelf space to increase revenue with last mile promotions, BenQ’s Stretch Displays are the leading choice. Every Stretch Display comes packaged with X-Sign, BenQ’s exclusive signage management software. X-Sign makes it easy to design, display, and replace dynamic content, such as videos and scrolling text, which are more efficient than static ads. More importantly, BenQ’s Stretch Displays provide an ideal combination of hardware features. Especially designed to fit on shelves, BenQ Stretch Display is a perfect match for numerous retail configurations. Meanwhile, having Android built in means that BenQ Stretch Displays are truly plug-and-play, all-in-one devices – no external media player, external speakers, or unsightly cables required.
All-in-One, Clutter Free Solution
Android Built-In
Built-in Android means that BenQ BH2801N is ready to work as soon as operators plug it in. There’s no need to hook it up to a PC or other device to serve content, and embedded speakers provide for BH2801N’s audio needs. With no cables to hide, the all-in-one BH2801N fits neatly on shelves and reduces clutter.
USB Plug & Play
BH2801N's plug-and-play simplicity enables you to access and play multimedia files directly from a USB flash drive. Requiring no PC connection or complicated cable setup, BH2801N ensures a holistic shopping experience with the most hassle-free installation.
Integrated X-Sign 2.0 Software with Stretch Content Templates
High Brightness
At 1000 nits brightness, striking colors and clarity still can be provided even in brightly lit environments, which allows BH2801N to fully support your indoor and semi-outdoor applications.
24/7 Non-Stop Operation
A 55,000-hour lifespan and industrial-class performance make BH2801N far more economical than consumer display models. Built especially for business use with advanced panel technology, BH2801N can provide reliable 24/7 non-stop performance for years and years.

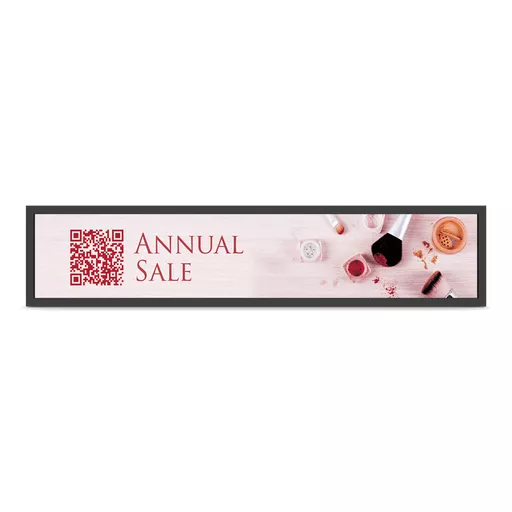

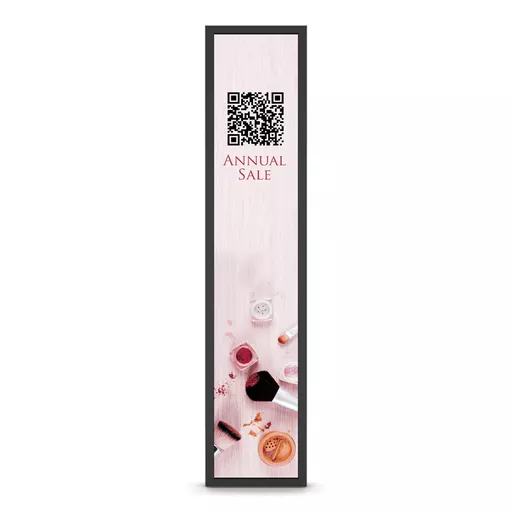

Flawless Display in Portrait and Landscape View
Unlike anything else available on the market, BenQ Bar Type displays are built to ensure flawless portrait and landscape view. This choice between vertical and horizontal installation greatly increases flexibility when operators are designing and arranging their stores.
Integrated X-Sign 2.0 Software with Stretch Content Templates
Specially Designed Long-and-Narrow Templates
X-Sign offers templates especially designed to fit the screens of Stretch Display Series. After choosing a template, users can make the perfect advertisement simply by adding images and text.
Real Time Messages
X-Sign lets operators push real-time messages to the display network to create instant excitement.
Instant Price Updates
Updating prices and other fluctuating content is easy. Operators just need to modify a centralized .csv file in the cloud.
Broadcast YouTube Live Streaming across Multiple Displays
With X-Sign, operators can insert live YouTube broadcasts of product launches on Smart Signage in real time, which makes promoting new products instant and easy.
QR Code Interaction and Analysis
X-Sign allows operators to embed QR Codes that, when scanned, can offer customers the latest promotional information. X-Sign also offers QR Code analysis to let operators see when and where customers are interacting with content. This analysis can help operators quickly adjust their offers to match customer interest.
X-Sign Designer
BenQ’s X-Sign 2.0 takes the hassle out of designing signage content. Included with BH2801N, BenQ’s exclusive X-Sign software provides content templates that are especially designed for long-and-narrow stretch displays, making it easy for operators to quickly design and roll out new promotional material. The templates also let operators add images, videos, and scrolling text to their marketing materials. The long-size templates let operators create marketing content easily while the ability to enrich materials with media content will boost the store’s bottom line.
Real Time Messages
X-Sign lets operators push real-time messages to the display network to create instant excitement.
QR Code Interaction and Analysis
X-Sign allows operators to embed QR Codes that, when scanned, can offer customers the latest promotional information. X-Sign also offers QR Code analysis to let operators see when and where customers are interacting with content. This analysis can help operators quickly adjust their offers to match customer interest.
Broadcast YouTube Live Streaming across Multiple Displays
With X-Sign, operators can insert live YouTube broadcasts of product launches on Smart Signage in real time, which makes promoting new products instant and easy.
Centralized Remote Display Management
X-Sign’s intuitive interface makes it easy for operators to monitor and manage all remote displays from a central, off-site location. With X-Sign, operators can keep tabs on display performance in real-time and receive instant alerts about any issues. Loaded with functionality, X-Sign also allows operators to see what content is playing on each display, manage updates, restart displays, and manage screen on/off and volume settings.
Hassle-Free Display Management
With cloud features, BenQ DMS combined Device Info and Management, Apps Management and OTA (Over-the-Air) Update to provide you an ultimate device management solution for your productivity.
Device Info and Management
Remotely control your displays with DMS Cloud via Internet. It’s an effective way to lower TCO and energy consumption for your operation.
Apps Management
Install Androidâ„¢ apps for a selection of displays through our cloud server. DMS Cloud is designed to save you the hassles of repetitive manual installation work.
OTA (Over-the-Air) Update
Upgrade the latest BenQ firmware for your displays through our OTA Update support and keep them running smoothly at all times.
More Features
DMS Local
DMS Local is a Device Info and Management software based on windows OS. For users who would like to control your displays remotely via LAN, you can download DMS Local software for your operation.
MDA (Multiple Display Administrator)
For users who would like to control your displays remotely via RS232, you can download MDA software for your operation.
Specifications
tr style="box-sizing: inherit;"th class="text-left" style="box-sizing: inherit; text
| Display |
|---|
| LED backlighting type |
Edge-LED |
| Touchscreen |
No |
| Active display area (W x H) |
133 x 699.4 mm |
| Display technology |
LED |
| Display diagonal |
71.1 cm (28") |
| Display resolution |
1920 x 360 pixels |
| Display brightness |
1000 cd/m² |
| Contrast ratio (typical) |
3000:1 |
| Panel life |
55000 h |
| Native aspect ratio |
16:3 |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
2 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
1.32 cm |
| Bezel width (side) |
1.32 cm |
| Bezel width (bottom) |
1.32 cm |
| Product colour |
Black |
| Panel mounting interface |
400 x 100 mm |
| VESA mounting |
Yes |
| Performance |
|---|
| Purpose |
Universal |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Vietnamese |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
25 |
| Wi-Fi |
No |
| Panel life |
55000 h |
| Power |
|---|
| Power consumption (typical) |
20 W |
| Power consumption (standby) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Computer system |
|---|
| Internal memory |
2 GB |
| Internal storage capacity |
32 GB |
| Weight & dimensions |
|---|
| Width |
725.8 mm |
| Depth |
42.5 mm |
| Height |
159.4 mm |
| Weight |
4.3 kg |
| Packaging data |
|---|
| Package weight |
7.1 kg |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
DC, HDMI, RS-232 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
DC, HDMI, RS-232 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-25 - 60 °C |
