SKU: C88CS | Brand: Blustream

SKU: C88CS | Brand: Blustream

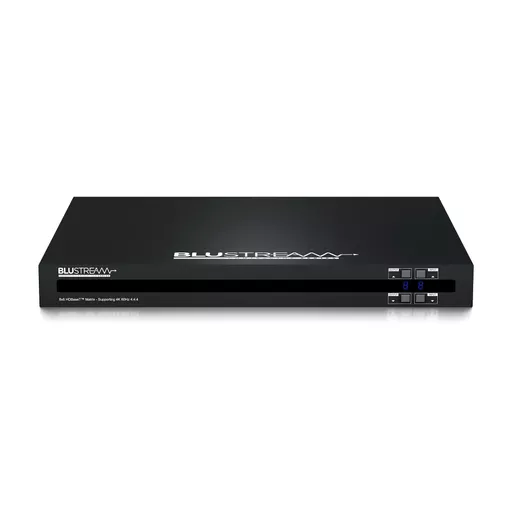

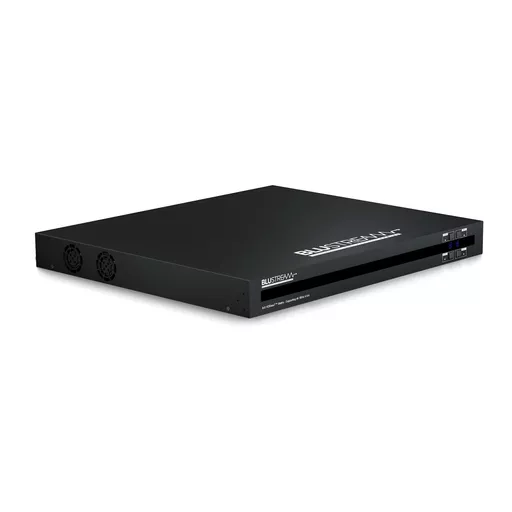

Blustream C88CS matrix switcher AV matrix switcher

Blustream C88CS matrix switcher AV matrix switcher

 Order Before 4pm for Next Working Day Delivery*

£1,916.88  Excl VAT £2,300.26  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



Description

Our Contractor 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.



The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).



The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs, and a web browser interface module for control and configuration of the matrix.



Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
  • Supplied with Blustream IR receivers and emitters
  • 3rd party drivers available for major control brands
  • 1U Design for 19" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Recommended receiver: RX70CS (where 18Gbps CSC support is required)





*For 18Gbps CSC support use RX70CS receivers



Specifications

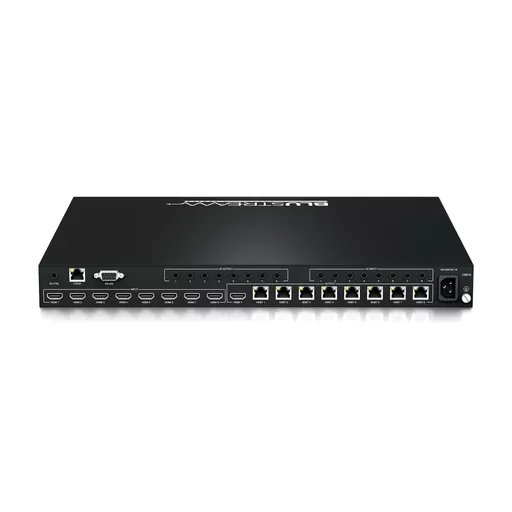

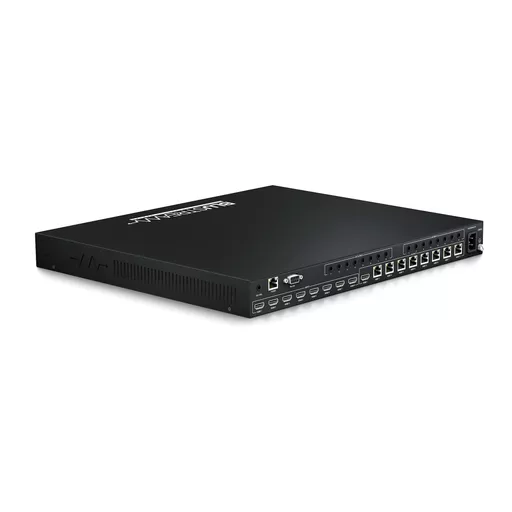

  • Video Input Connectors: 8 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connector
  • RS-232 Serial Port: 1 x DB9 Serial connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 9 x 3.5mm stereo jack
  • IR Output Ports: 8 x 3.5mm mono jack
  • Rack Mountable: 1U rack height, rack ears included
  • Case Dimensions (without feet & connections) (W x D x H): 437mm x 377mm x 44mm
  • Case Dimensions (with feet & connections) (W x D x H): 437mm x 384mm x 53mm
  • Shipping Weight: 6.25kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: Internal 100-240V AC

Box Contents

1 x C88CS

1 x Rack Mounting Kit

1 x Remote Control

8 x IR Emitters

9 x IR Receivers

1 x RS-232 Control Cable

1 x IR Control Cable - 3.5mm-3.5mm Cable

1 x Quick Reference Guide

Power Cable(s)

Download
