TSS-1070-T-B-S-LB-MNT KIT
10.1 in. Room Scheduling Touch Screen for Microsoft Teams® Software, Black Smooth, includes one TSW-1070-LB-B-S light bar and one TSW‑770/1070‑MSMK‑ANG‑B‑S multisurface mount kit
A stylish and versatile wall mount touch screen designed specifically to run the Microsoft Teams® Panels scheduling application. Integrates directly with additional room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming.
Crestron® TSS-770 series touch screens are designed to enhance and simplify room scheduling across an enterprise. The TSS-770 installs near a meeting room or huddle space to provide a clear indication of its availability and scheduling while integrating seamlessly with the Microsoft Teams® Panels scheduling application. Support for additional room scheduling services is also provided.
The TSS-770-T-LB-MNT KIT includes one TSWΓÇæ1070ΓÇæLB series room availability light bar and one TSWΓÇæ770/1070ΓÇæMSMKΓÇæANG multisurface mount kit with the touch screen, providing a complete room scheduling solution out of the box.
Microsoft Teams Panels
The native Microsoft Teams Panels scheduling application helps to maximize productivity and manage usage for meeting spaces via Microsoft Teams. The touch screen can be configured to use the Microsoft Teams scheduling calendar, allowing users to book meetings through their Microsoft Teams account. If desired, the room can be reserved on the spot for an ad hoc meeting.1,2
NOTE: For more information on Microsoft Teams Panels, refer to https://docs.microsoft.com/en-us/microsoftteams/devices/teams-panels.
Built for Enterprise Scheduling Applications
The TSS-770 is engineered to meet the demands of a corporate office, conference center, or education environment. Its 10.1 in. (257 mm) capacitive display provides an intuitive user interface. A smaller 7 in. (178 mm) version (TSSΓÇæ770 series) is also available.
Functional: The TSS-770 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-770 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, can connect to the network over Wi‑Fi® communications via a local wireless access point (WAP).
Versatile: Crestron offers a variety of mounting options for mounting the TSS-770 to drywall, masonry, glass, mullions, and other surfaces. Optional light bar and hallway sign accessories are available to increase the visibility of the room availability status.
Reliable: The TSS-770 is purposeΓÇæbuilt for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-770 checks nightly for app updates and loads the latest version automatically.
Secure: The TSS-770 employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service integration. These features protect your network against service interruptions and malicious intrusions.
Manageable: The TSS-770 features cloudΓÇæbased provisioning and management, which streamlines configuring, monitoring, and updating the touch screen on the network. The TSS-770 also supports SNMP, so it can be monitored by your IT administrator.
Status Indicator Options
The TSS-770 provides dual high-speed USB 2.0 ports for connecting Crestron room scheduling accessories (sold separately) to the touch screen that enhance an enterprise room scheduling solution.
NOTE: The touch screen supports the use of a single light bar or status indicator accessory only. The RFID-USB card reader accessory can be connected to the second USB port.

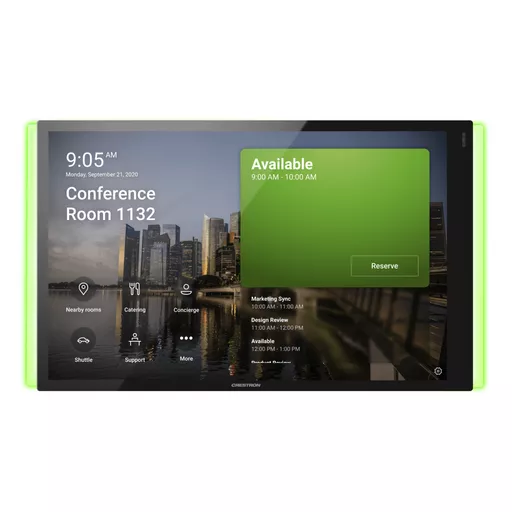

The included TSW-1070-LB series light bar provides a 180┬░ visual indication of a room’s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.3
The optional SSWΓÇæEL and SSCΓÇæEL series hallway signs feature a two sided acrylic sign face that can be custom engraved with the room name or number. The SIWΓÇæ100 offers a lower profile wall mount status indicator.3
Bluetooth Beacon
The built‑in Bluetooth® proximity detection beacon works with the Crestron Go App and Crestron App to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.4
Proximity Sensor and Brightness Controls
The TSS-770 provides a built-in proximity sensor that wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Power over Ethernet
PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (sold separately) offer a total networking solution with builtΓÇæin PoE for multiple touch screens. A PoE Injector (PWEΓÇæ4803RU, sold separately) is also available to support a single touch screen.
NOTE: PoE+ is required when connecting a light bar or hallway sign via USB. Refer to the “Power” specifications for more details.
XiO Cloud Service
The TSS-770 is compatible with the XiO Cloud® service, which remotely provisions, monitors, and manages Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously. Unlike other virtual machine‑based cloud solutions, Azure services provide unlimited scalability. For more information, visit www.crestron.com/xiocloud.
Wall Mount Options
Using the bracket provided, the TSS-770 is easily installed over a 2ΓÇægang or 3ΓÇægang US electrical box, or a 2ΓÇægang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

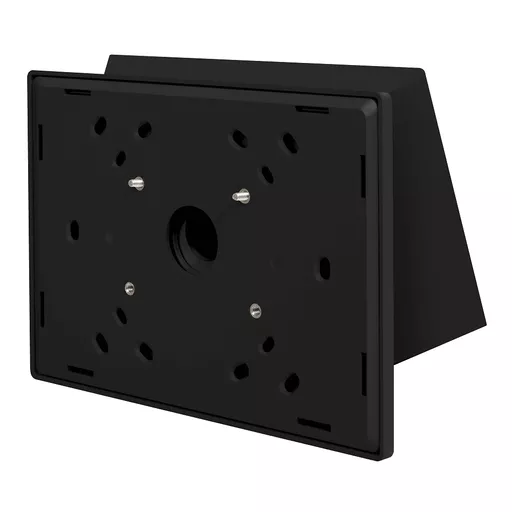

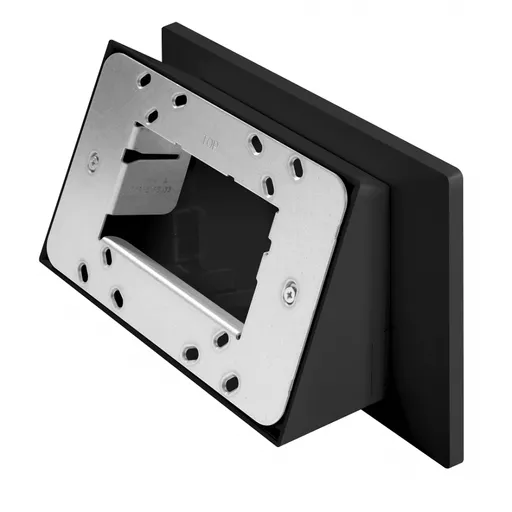

The included TSWΓÇæ770/1070ΓÇæMSMKΓÇæANG multisurface mount kit also allows the TSS-770 touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at a meeting space entrance for room scheduling applications.
Additional wall mounting options are available using the optional TSWΓÇæUMBΓÇæ70 universal mounting bracket, TSWΓÇæUMBΓÇæ70ΓÇæPMK preconstruction mounting kit, and TSWΓÇæUMBΓÇæ70ΓÇæBBI back box (sold separately).5
Optional Mounting Accessories
The TSS-770 supports numerous optional mounting accessories (sold separately) that allow the touch screen to be installed in all kinds of installations:
The TSW-770/1070-MUMK allows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.
The TSWΓÇæ770/1070ΓÇæRMB-1, TSWΓÇæ770/1070ΓÇæRMBΓÇæ2, and TSWΓÇæ1070ΓÇæRMBΓÇæ3 retrofit mounting brackets allow for retrofit installations in place of an older Crestron touch screen (APAD, CTΓÇæ1000, LCΓÇæ1000, TPSΓÇæ4L, or TPSΓÇæ2000L) without having to tear out the old mounting hardware or patch the wall.
Though not typical for most scheduling applications, the TSWΓÇæ1070ΓÇæRMKΓÇæ2 rack mount kit can be used to mount the touch screen into a 19 in. rack. When installed, the touch screen occupies four rack spaces.
Key Features
- Touch screen designed specifically to run the Microsoft Teams® Panels scheduling application
- Delivers a superior and cost-effective alternative to consumer tablet devices
- 10.1 in. (257 mm) widescreen capacitive touch screen display
- Standard U.S., U.K., and European electrical box installation with additional mounting options available
- Single wire Ethernet connection with PoE or PoE+ power
- Wi‑Fi® network connectivity
- Dual USB 2.0 ports for room availability accessories
- Enterprise grade security and authentication
- Black smooth finish
- Includes one TSWΓÇæ1070ΓÇæLB series light bar and one TSWΓÇæ770/1070ΓÇæMSMKΓÇæANG multisurface mount kit
