SKU: DS-C66S-S12 | Brand: Hikvision

SKU: DS-C66S-S12 | Brand: Hikvision

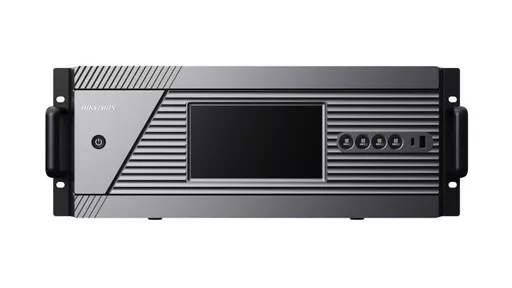

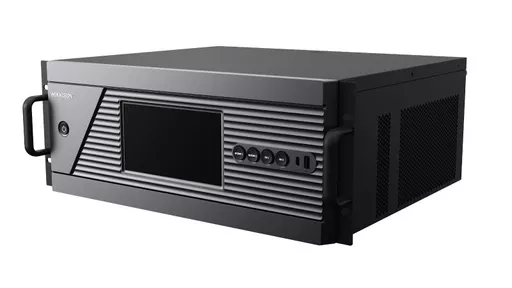

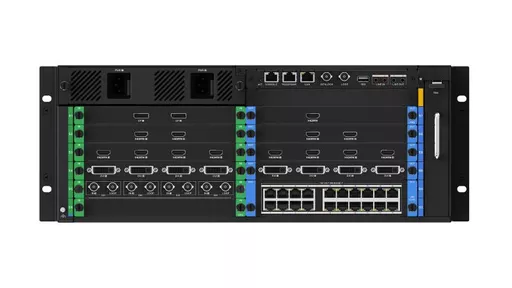

Hikvision DS-C66S-S12 12 Slots C66S Chasis

Order Before 4pm for Next Working Day Delivery*

£2,145.90  Excl VAT £2,575.08  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



12 Slots C66S Chasis

  • Hardware Structure
  • The device adopts a 4U standard rack-mounted design with a 12-slot chassis supporting 6 input and 6 output slots.
  • The 4U chassis features 1 fan with left-right airflow cooling.
  • The chassis supports button operations, including 2 custom scene switch buttons and 2 scene switch buttons.
  • The device features a plug-and-play modular design for flexible expansion and hot-swappable service boards for easy maintenance.
  • The 4U chassis features a 7-inch touch IPS LCD panel, supporting real-time monitoring of chassis and sub-board status.
  • The chassis supports 2 × 3.5mm audio input and 2 × 3.5mm audio output.
  • Video Input
  • The device supports video input from computers, video conferencing terminals, and ultra-high-resolution servers, is compatible with DVI, HDMI, HDMI 4K, DP 4K, and SDI signal inputs, and allows custom resolution input.
  • The device supports both composite and standalone audio input, with 16-bit, 32K/48K sampling, and dual-channel capabilities.
  • Both image capture and output support RGB888 for lossless image quality, with support for up to RGB101010.
  • The device supports ultra-high-resolution fusion, accommodating up to sixteen 4K ultra-high-definition signal inputs.
  • The device supports input OSD overlay and input image cropping to remove black borders.
  • Video Output
  • The device supports DVI, HDMI, and HDMI 4K video signal output and the video signal output via network ports.
  • 2K sub-board supports 4 × 1080P60 outputs and 4K sub-board supports 2 × 4K outputs. Output is compatible with LCD and LED displays, with customizable output resolution.
  • The main control board supports standalone audio and HDMI sub-boards support composite audio.
  • The device utilizes frame synchronization technology to ensure all output ports display completely synchronized, intact, and smooth images without stuttering, frame loss, tearing, or seams.
  • The LED controller board supports mini loading (0.65MP per network port) and standard loading modes (2.925MP per network port). Standard load mode requires compatible screen support.
  • Video Wall Function
  • The device supports video wall preview and joint source preview with an optional preview board.
  • The 12-slot chassis supports arbitrary large-screen splicing for up to 24 displays when fully configured with all boards.
  • The device supports windowing, roaming functions, and arbitrary layer windowing on a single interface.
  • The device supports 3 background images, with 1 per wall at 1920 × 1080 resolution.
  • The device supports multiple video walls, with support for up to 8 video walls.
  • The device supports up to 128 preset scenes, allowing users to customize the video wall layout for each scene.
  • The device supports 24 signal source group auto-switching (including single-window, partial-window, and full-window modes), allows saving all auto-switching resources in scenes, and enables custom settings for location, scene, and time per plan.
  • The device supports double-click to zoom in/out on split-screen sub-windows.
  • Operation and Maintenance
  • The device supports exporting logs to a USB drive via the front panel USB port.
  • The device supports access and operation via PC client and Web interface, compatible with browsers such as Chrome 45 and above.
  • The device supports access and operation via Android and iOS clients.
  • The device supports remote parameter retrieval, configuration, and the remote export and import of parameters.
  • The device supports remote monitoring of system operation status and logs, as well as remote restart, restore to default settings, upgrades, and other daily maintenance operations.
  • The device supports automatic fault detection and alerts, including abnormal device alarms for sub-board online status such as network disconnection, IP conflict, unauthorized access, temperature exceedance, and abnormal fan status.
  • The device supports user permission management, allowing users with different permissions to access specified resources and operate designated video wall modules.
  • The device supports manual time synchronization or NTP time synchronization.
  • Video Decoding
  • Decoding boards support decoding of network sources such as network cameras and NVRs.
  • Device Access
  • The device supports access to network source devices for decoding via ONVIF standard protocol.
  • The device supports device control via network keyboards, serial port keyboards, or tablets, enabling functions like video split-screen switching and scene switching.
  • Advanced Features
  • The device supports LCD control via software, including screen on/off, signal source switching, and adjustments for brightness, contrast, color, sharpness, and horizontal/vertical image positioning.
  • The device supports HDR10, HLG, and HDCP access.
  • The device supports 8-bit/10-bit and adapts to input sources with frame rates ranging from 24Hz to 120Hz, featuring adaptive frame rate support.
  • The device supports reverse control of ultra-high-resolution server keyboard and mouse via the USB port on the main control board.
  • The device supports Genlock synchronization port.
