SKU: LH6570UHB-B1 | Brand: iiyama

SKU: LH6570UHB-B1 | Brand: iiyama

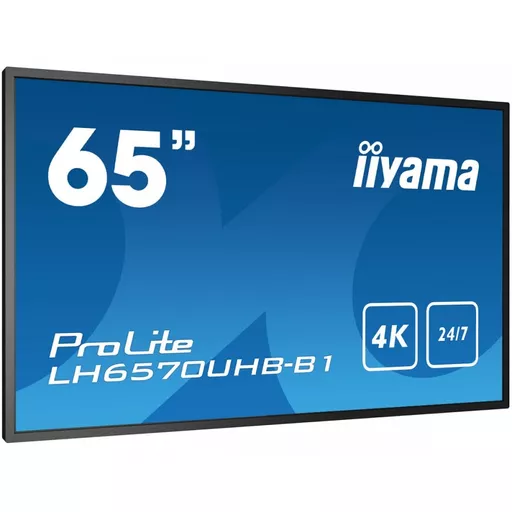

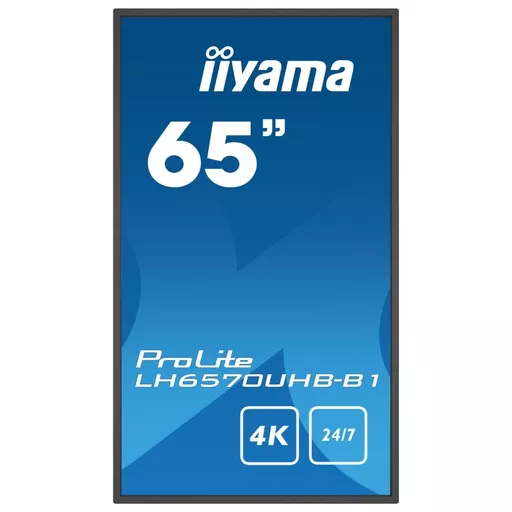

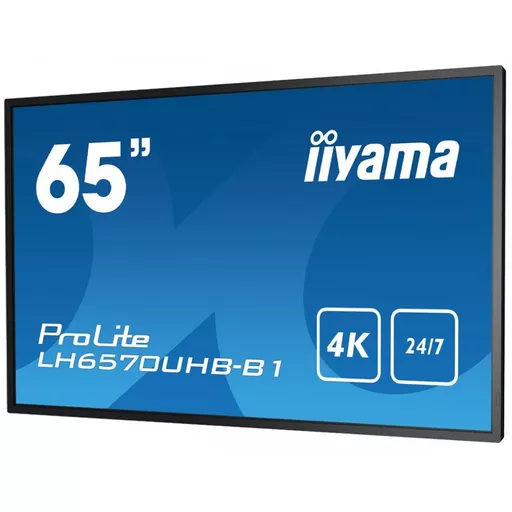

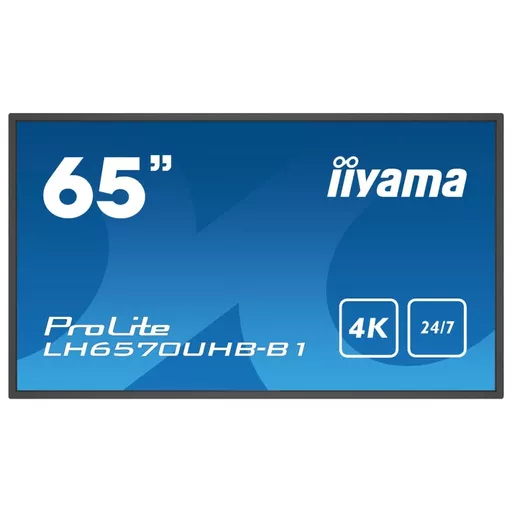

iiyama LH6570UHB-B1 65" Signage Display

iiyama LH6570UHB-B1 65" Signage Display

£946.33  Excl VAT £1,135.60  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



Description

ZERO-GAP WALL MOUNT Style commercial interiors with Ultra Slim line displays and portray them like smart artwork, using the included Zero-Gap wall mount brackets. ULTRA SLIM With 50 percent depth saving over similar models, the jaw-dropping and best in class 35mm total depth display can be installed discretely and elegantly in all areas. ANDROID OS Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it. 24/7 24/7 displays are designed for a continuous operation. 4K UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.


Specifications

Display
Display number of colours 1.07 billion colours
Touchscreen No
Active display area (W x H) 1428.5 x 803.5 mm
Display technology VA
Display diagonal 163.8 cm (64.5")
Display resolution 3840 x 2160 pixels
Display brightness 700 cd/m²
HD type 4K Ultra HD
Response time 8 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.372 x 0.372 mm
Display diagonal (metric) 164 cm
Native aspect ratio 16:9
Horizontal scan range 28 - 135 kHz
Native refresh rate 60 Hz
Ports & interfaces
Remote (IR) input 1
USB port Yes
RS-232C Yes
Wi-Fi No
PC Audio in Yes
Ethernet LAN Yes
HDMI ports quantity 2
DVI port No
Ethernet LAN (RJ-45) ports 1
USB version 2.0
USB ports quantity 2
HDMI input ports quantity 2
Design
Product design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal/Vertical
Bezel width (top) 1.2 cm
Bezel width (side) 1.2 cm
Bezel width (bottom) 1.2 cm
Product colour Black
Panel mounting interface 400 x 400 mm
VESA mounting Yes
Performance
Purpose Universal
Operating hours (hours/days) 24/7
Mean time between failures (MTBF) 50000 h
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
On Screen Display (OSD) Yes
Number of OSD languages 11
HDCP Yes
HDCP version 2.3
Wi-Fi No
Power
Power consumption (off) 0.3 W
Power consumption (typical) 150 W
Power consumption (standby) 0.5 W
Energy efficiency scale A to G
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 170 kWh
Computer system
Computer system Yes
Processor cores 4
Operating system installed Android 9.0
Internal memory 3 GB
Internal storage capacity 32 GB
Built-in processor Yes
On-board graphics card model ARM Mali-G51
Weight & dimensions
Width 1456 mm
Depth 35 mm
Height 831 mm
Weight 29 kg
Packaging data
Package width 1640 mm
Package depth 190 mm
Package height 970 mm
Package weight 36 kg
Batteries included Yes
Remote control included Yes
Cables included AC, HDMI, RS-232, USB
Packaging content
Batteries included Yes
Remote control included Yes
Cables included AC, HDMI, RS-232, USB
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Technical details
VESA mounting Yes
Sustainability certificates CE, ErP, REACH, RoHS, WEEE
Thin Client
Operating system installed Android 9.0
Internal memory 3 GB
Internal storage capacity 32 GB
Other features
Wi-Fi No
Mean time between failures (MTBF) 50000 h
Display technology VA
Bezel width (top) 1.2 cm
Bezel width (side) 1.2 cm
Bezel width (bottom) 1.2 cm
Energy efficiency scale A to G
