SKU: 22SM3G | Brand: LG

SKU: 22SM3G | Brand: LG

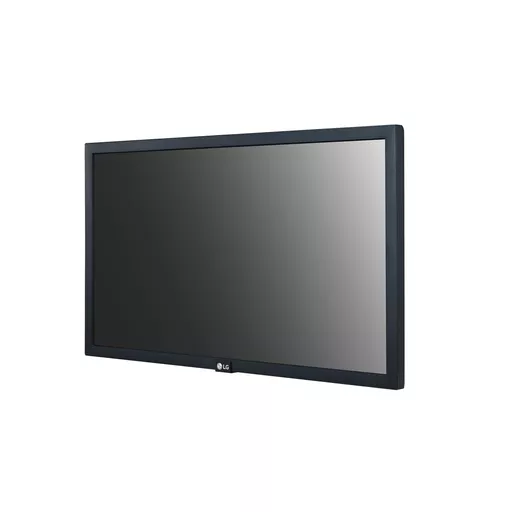

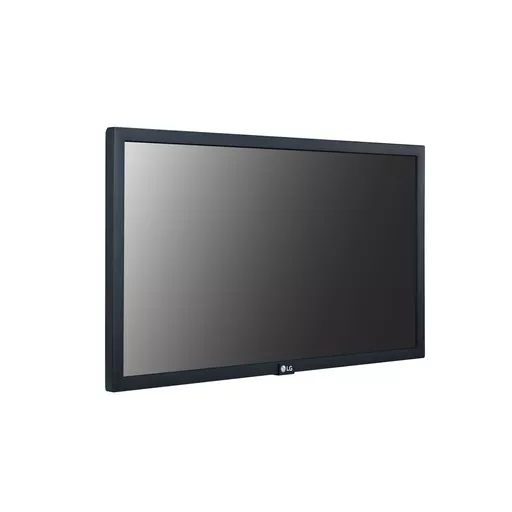

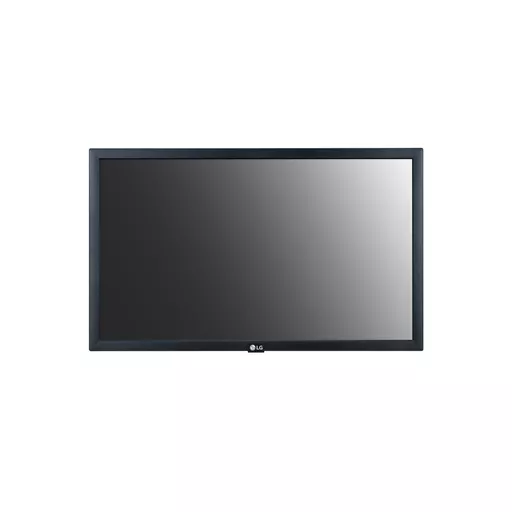

LG 22SM3G-B Digital signage display

LG 22SM3G-B Digital signage display

£261.90  Excl VAT £314.28  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



22

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.



Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

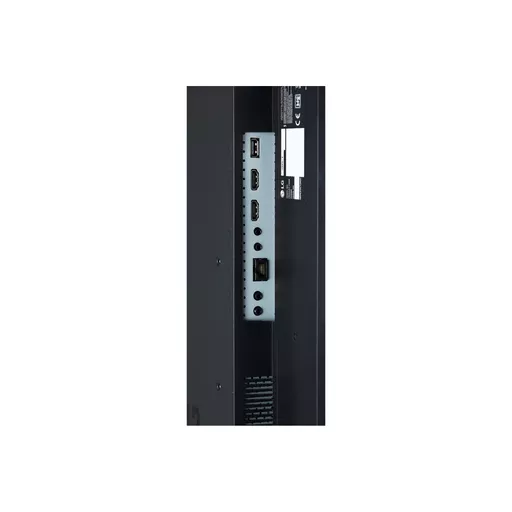

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.



USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.



Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.



Real-time Promotion

With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.



Wireless Solution

22SM3G operates as a virtual router which can be a wireless access point for mobile devices.



Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.



Real-time Care Service with LG ConnectedCare

The maintenance gets easier and faster with the optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.



Specifications

Display
Touchscreen No
Display technology IPS
Display diagonal 54.6 cm (21.5")
Display resolution 1920 x 1080 pixels
Display brightness 250 cd/m²
HD type Full HD
Contrast ratio (typical) 1000:1
Contrast ratio (dynamic) 400000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display diagonal (metric) 55.88 cm
Native aspect ratio 16:9
Ports & interfaces
USB port Yes
RS-232C Yes
Wi-Fi Yes
Ethernet LAN Yes
HDMI ports quantity 2
DVI port No
Audio (L/R) in 1
Ethernet LAN (RJ-45) ports 1
RS-232 interface Yes
USB version 2.0
USB ports quantity 1
Audio
Number of built-in speakers 2
RMS rated power 2 W
Built-in speaker(s) Yes
Design
Product design Digital signage flat panel
Orientation Horizontal
Product colour Black

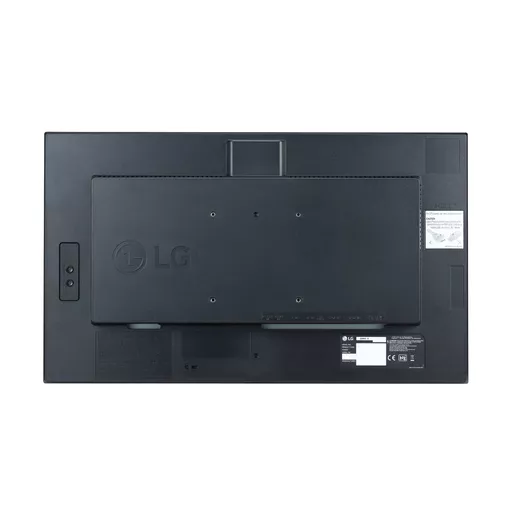

Panel mounting interface 100 x 100 mm
Certification CB, NRTL, EMC, FCC Class "A", CE, ErP
VESA mounting Yes
Performance
Purpose Universal
Operating hours (hours/days) 16/7
Wi-Fi Yes
Power
Heat dissipation 7.89 BTU/h
Power consumption (sleep) 1 W
Power consumption (off) 0.5 W
Power consumption (typical) 33 W
Power consumption (standby) 30 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Computer system
Computer system No
Processor cores 4
Internal memory 4 GB
Built-in processor Yes
Weight & dimensions
Width 510.3 mm

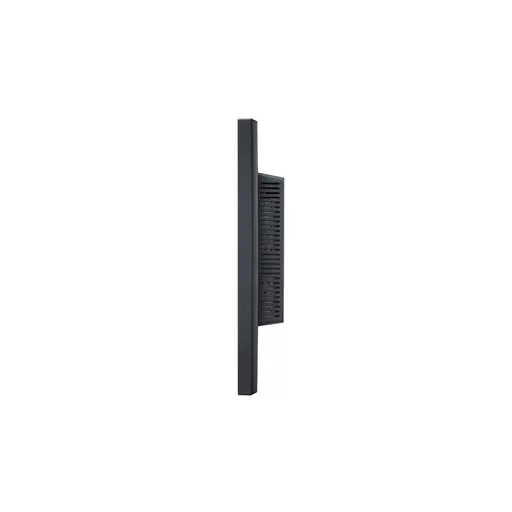

Depth 53.8 mm
Height 302.1 mm
Weight 3.34 kg
Packaging data
Package width 565 mm
Package depth 103 mm
Package height 357 mm
Package weight 3.5 kg
Batteries included Yes
Remote control included Yes
Mounting kit Yes
Cables included AC
Packaging content
Batteries included Yes
Remote control included Yes
Mounting kit Yes
Cables included AC
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 85%
Certificates
Certification CB, NRTL, EMC, FCC Class "A", CE, ErP
Technical details
VESA mounting Yes
Thin Client
Internal memory 4 GB
Features
Harmonized System (HS) code 85285210
Other features
Wi-Fi Yes
Display technology IPS
