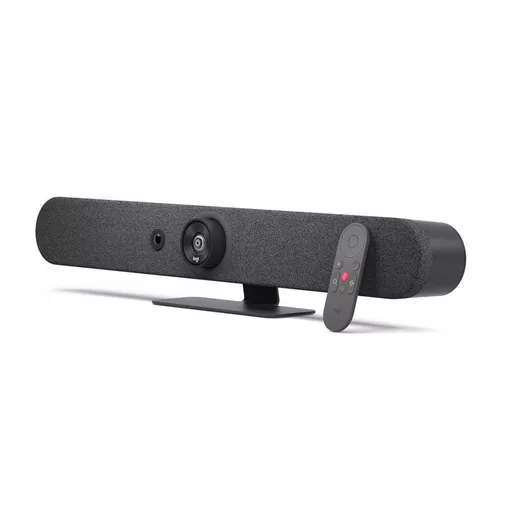

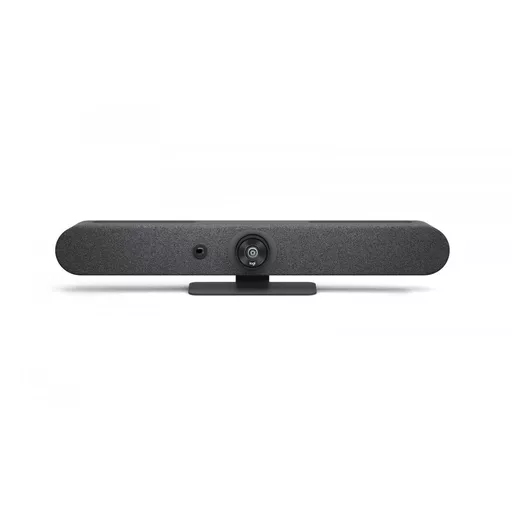

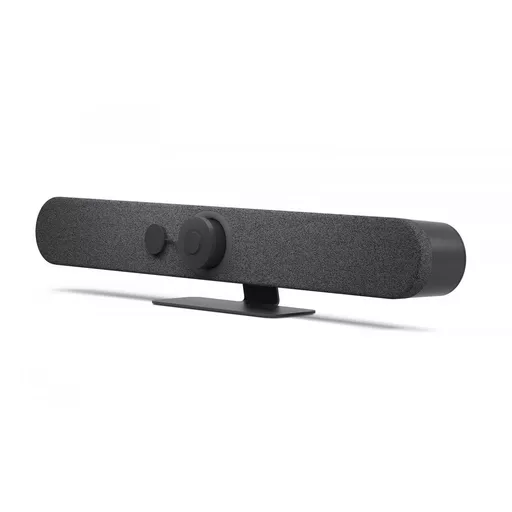

Logitech Rally Bar Mini

SKU: 960-001340 | Brand: Logitech

Logitech Rally Bar Mini

Order Before 4pm for Next Working Day Delivery*

£1,798.22 Excl VAT £2,157.87 Inc VAT

Qty

Product Wishlist & Compare Placeholder

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

Options & Accessories

Installation Services

Purchase Orders

Public Sector Frameworks

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder

Logitech Rally Mic Pod Microphone Black - £266.09
Logitech Rally Mic Pod Microphone Black

Logitech Rally Mic Pod Mount (white) - £65.00
Logitech Rally Mic Pod Mount (white)

Logitech Rally Mic Pod Extension Cable - £182.00
Logitech Rally Mic Pod Extension Cable

Logitech Swytch Hub - £685.00
Logitech Swytch Hub

Description

Simplicity meets versatility with the Logitech Rally Bar Mini (960-001340), Logitech’s most advanced all-in-one video bar for small meeting rooms and huddle spaces. With studio quality audio and video, AI driven performance, and flexible deployment options, Rally Bar Mini sets a new standard for small room collaboration.

Premier Video Bar for Small Meeting Rooms

Rally Bar Mini is Logitech’s premier all-in-one video bar for small rooms and huddle spaces.

It’s remarkably simple to use, manage, and deploy at scale, delivering the capabilities of larger video bars like Logitech Rally Bar in a compact form factor for smaller spaces. With studio-quality audio and video, motorized pan and tilt, and AI-powered performance, Rally Bar Mini sets new standards for video collaboration.

Scalable across hundreds or thousands of rooms, Rally Bar Mini offers clutter-free cable management, multiple mounting options, and flexible deployment modes. Plug and play with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.

Simple to Set Up

USB Plug and Play

Easily connects to virtually any PC or Mac®, with no additional software required

Appliance Mode

Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device

All-in-One Design

Sleek, minimal footprint expedites setup and reduces clutter

Streamlined, Flexible Installs

Confidently deploy at scale with smart cable management and multiple mounting options

Simple to Use - RightSense Technologies

RightSight

Detects meeting participants, automatically moves the lens and adjusts the zoom so no one is left out of the picture

RightLight

Intelligently adjusts video settings in all light conditions so everyone always looks their best

RightSound

AI-driven voice levelling and unwanted noise suppression deliver outstanding clarity

One-Touch Join

Optionally deploy with Tap to quickly and easily initiate meetings across Zoom, Microsoft Teams, and other cloud services

Simple to Manage

Logitech Sync

Single platform to monitor room health and keep devices up to date, plus insights on room occupancy

Deploy Updates at Scale

Easily propagate upgrades and bug fixes to Rally Bar and your other supported Logitech devices

Forward-Looking Architecture

Sync API is a robust foundation for new insights and integrations

Partner Dashboard Support

Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplified device management experience

Audio

Room-filling Sound

Ultra low distortion speakers with RightSoundâ„¢ convey every word with outstanding clarity

Adaptive Beamforming Mic Array

Beamforming mics pick up voices at every seat and focus on the active talker while suppressing ambient noise

Expansion Ready

Add up to two Rally mic pods for even greater coverage in larger settings

Video

Ultra-HD Video

Brilliantly sharp video, outstanding colour, and exceptional optical accuracy at resolutions up to 4K

Expansive Room Coverage

Mechanical pan and tilt covers rooms 163° across by 110° high, with exceptional image quality

Cinema Quality

Logitech RightLightâ„¢ technology captures natural-looking skin tones, even in dim or backlit conditions

AI Viewfinder

Framed to Perfection

A second built-in camera lens has the ability to detect meeting participants, amplifying RightSightâ„¢ autoframing

See Everyone Clearly

All meeting participants, even late arrivals, are automatically seen and included

Move About Freely

AI Viewfinder uses scene awareness to keep the camera on the action

Specifications of Logitech RallyBar All-in-One Video Bar

Certifications & Compatibility

- Certifications: Zoomâ„¢ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
- Compatibility: Plug and play USB connectivity with virtually any video conferencing application
- Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

General

- Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 4k

Camera

- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80.7°
- Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

Dimensions

- Height: 91.4 mm / 3.6 in
- Width: 719 mm / 2.36 ft
- Depth: 101 mm / 3.98 in
- Lens Depth: 18.5 mm / 0.73 in
- Weight: 4.03 kgs / 8.88 lbs

Speakers

- Woofer: 70mm / 2.7in
- Mid-range: 2x / 1.5in
- Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Sensitivity: 86+/-2dB SPL at 1W, ½ meter
- THD: 1kHz < 2%
- Speaker Sampling Rate: 48 kHz

RightSenseâ„¢ Technologies

- RightLightâ„¢: Renders natural skin tones for each participant
- RightSightâ„¢: Maintains persistent room awareness and detects human figures to auto-frame participants
- RightSoundâ„¢: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Microphones

- Frequency Response: 90Hz â€“ 16kHz
- Sensitivity: >-36dBFS +/-1dB @ 1Pa
- Microphone Data Rate Output: 48 kHz
- Pickup Range: 4.5m / 15 ft
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise Suppression: AI filter
- Add-on Mics: Supports up to 2 additional
- Rally Mic Pods

Interfaces

- HDMI Out: 2
- HDMI In: 1
- USB 3.0: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac (MIMO)
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy

Power & Cables

- Power Supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127mm x 51mm x 30mm
- DC Cable: 1.5m / 4.9 ft
- AC Cable: 1m / 3.28 ft
- HDMI 1.4 Cable: 2m / 6.5 ft
- USB A to USB C 3.0 Cable: 2.2m / 7.2 ft

Environmental

- Operating Temperature: 0 to 40 °C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting

Security

- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP

Warranty

- Standard: 2-year limited hardware warranty included

Package Contents

Rally Bar Mini
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main lens and AI Viewfinder
User documentation
