SKU: TL-SL2428P | Brand: TP-LINK

SKU: TL-SL2428P | Brand: TP-LINK

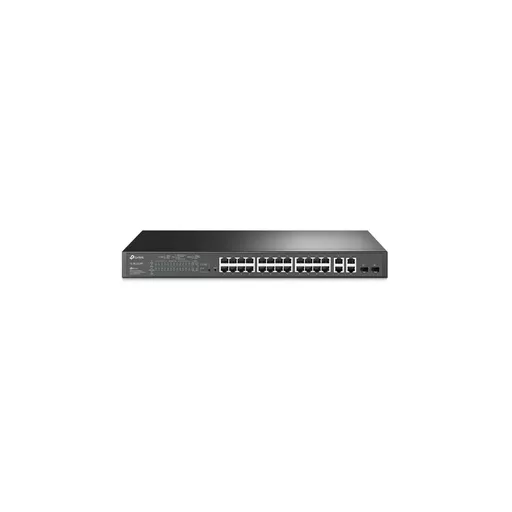

TP-Link TL-SL2428P JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

TP-Link TL-SL2428P JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

 Order Before 4pm for Next Working Day Delivery*

£159.97  Excl VAT £191.97  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder


What This Product DoesThe T1500-28PCT provides 24 10/100Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 10/100/1000Mbps RJ45 ports and 2 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK Smart PoE Switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch, TP-LINK smart PoE switch T1500-28PCT provides you the ideal access-edge solution.IEEE 802.3at/af-compliant Power over EthernetThe T1500-28PCT supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.Advanced QoS featuresTo integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.Abundant Layer 2 featuresFor more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.Enterprise Level Management FeaturesT1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.


Specifications

Management features
Multicast support Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Ports & interfaces
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Combo SFP ports quantity 2
Gigabit Ethernet (copper) ports quantity 4
Fast Ethernet (copper) ports quantity 24
Network
IGMP snooping Yes
Cable types supported Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Number of VLANs 512
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
10G support No
Virtual LAN features
VLAN support Yes
Number of VLANs 512
Data transmission
Number of VLANs 512
Throughput 9.5 Mpps
MAC address table 8000 entries
Switching capacity 12.8 Gbit/s
Number of queues 4
Jumbo frames support Yes
Technical details
Form factor 1U
Product colour Black
Firmware upgradeable Yes
Rack mounting Yes
Security
SSH/SSL support Yes
Security algorithms SSH, SSH-2, SSL/TLS
IGMP snooping Yes
Access Control List (ACL) Yes
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP v1/v2c/v3, RMON, SNTP, TFTP
Certificates
Certification CE, FCC, RoHS
Design
Form factor 1U
Product colour Black
Certification CE, FCC, RoHS
Rack mounting Yes
Number of fans 2 fan(s)
Performance
Firmware upgradeable Yes
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Harmonized System (HS) code 85176990
System requirements
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 222.15 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity 24
Total Power over Ethernet (PoE) budget 180 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 440 mm
Depth 220 mm
Height 44 mm
Packaging data
Quick start guide Yes
Cables included AC
Logistics data
Harmonized System (HS) code 85176990
Packaging content
Quick start guide Yes
Cables included AC
