Blustream C44-KIT Essential 4K HDCP 2.2 HDBaseT Matrix

SKU: C44-KIT | Brand: Blustream

Blustream C44-KIT Essential 4K HDCP 2.2 HDBaseT Matrix

Order Before 4pm for Next Working Day Delivery*

£1,178.58 Excl VAT £1,414.30 Inc VAT

Qty

Product Wishlist & Compare Placeholder

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder

Description

Our Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B Receivers.

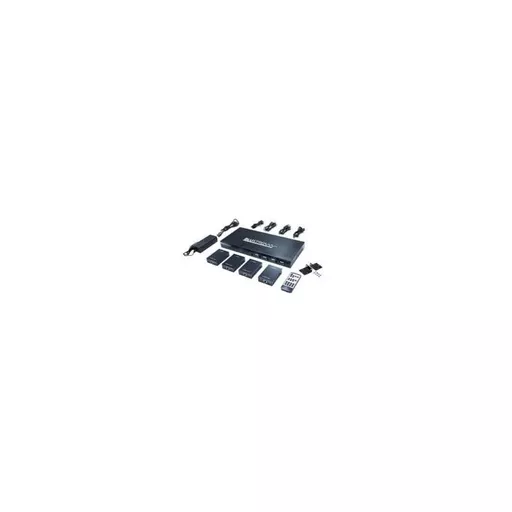

Box Content

1 x C44 matrix
4 x HEX70B-RX receivers
1 x Rack mounting kit
4 x Mounting kit for HEX70B-RX
1 x 24V/3.5A power supply
1 x IR remote control
4 x IR emitters
5 x IR receivers
1 x Quick Reference Guide

Key Features

Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Extends HDMI up to a distance of 70m over single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Web interface module for control and configuration of Matrix
Supports bi-directional IR on all HDBaseT outputs
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers
3rd Party drivers available for all major home control brands
1U Design for 19" rack mount integration - mounting kit included
Advanced EDID management
HDCP 2.2 compliant
Supplied with 4x HEX70B-RX receivers

Specification

Video Input Connectors: 4x HDMI Type A, 19-pin, female
Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
RS-232 serial port: 1x DB-9, female
TCP/IP Control: 1x RJ45, female
IR Input ports: 5x 3.5mm stereo jack
IR Output ports: 4x 3.5mm mono jack
Rack-Mountable: 1 U rack height, rack ears included
Case Dimensions (without feet) (W x D x H): 440mm x 202mm x 44mm
Dimensions (W x D x H): 440mm x 212mm x 52mm
Shipping Weight: 2.7kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 1x 24V/3.5A DC
