SKU: HEX150CS-KIT | Brand: Blustream

SKU: HEX150CS-KIT | Brand: Blustream

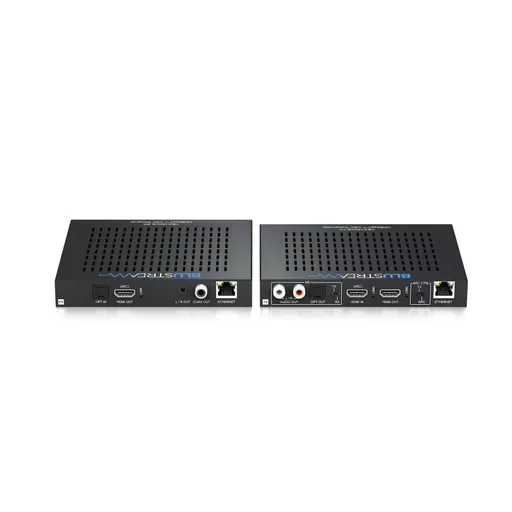

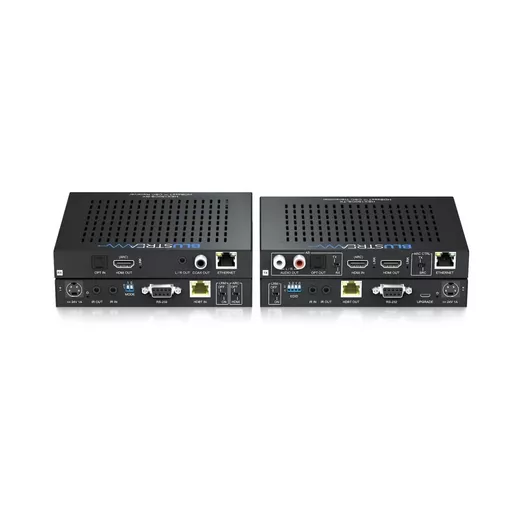

Blustream HEX150CS-KIT HDBaseT CSC Extender Set

Blustream HEX150CS-KIT HDBaseT CSC Extender Set

 Order Before 4pm for Next Working Day Delivery*

£518.95  Excl VAT £622.74  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder


HEX150CS-KIT
HDBaseT CSC Extender Set Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 100m (1080p up to 150m), Bi-directional IR & RS-232, EDID Management, ARC, Ethernet Pass Through, Audio Breakout, Bi-directional PoC, HDCP 2.2


Description
Our Platinum Range of HDBaseT products offer the very best in performance and flexibility.

The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion.

The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoC up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.


Key Features
  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 100m
  • Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
  • HDMI loop out on Transmitter
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility, and handshaking issues
  • Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
  • Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Bi-directional 10/100BaseT Ethernet pass-through
  • Bi-directional IR & RS-232 pass-through
  • Supplied with Blustream 5V IR receiver and emitter
  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Advanced EDID management
  • HDCP 2.2 support


Specifications

HEX150CS-TX:
  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • Audio Output Connectors: 2 x RCA (L/R), 1 x optical (SPDIF)
  • Ethernet Port: 1 x RJ45 connector
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID: 4-pin DIP switch
  • Power Supply: 1 x 24V/1A DC, 4-pin DIN connector

Box Contents

  • 1 x HEX150CS-TX
  • 1 x HEX150CS-RX
  • 1 x 24V/1A DC Power Supply
  • 1 x IR Receiver
  • 1 x IR Emitter
  • 2 x Mounting Brackets
  • 1 x Quick Reference Guide
