SKU: HEX31WP-TX | Brand: Blustream

SKU: HEX31WP-TX | Brand: Blustream

HEX31WP-TX HDMI & USB-C Wall Plate HDBaseT Transmitter

HEX31WP-TX HDMI & USB-C Wall Plate HDBaseT Transmitter

 Order Before 4pm for Next Working Day Delivery*

£549.60  Excl VAT £659.52  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



HEX31WP-TX

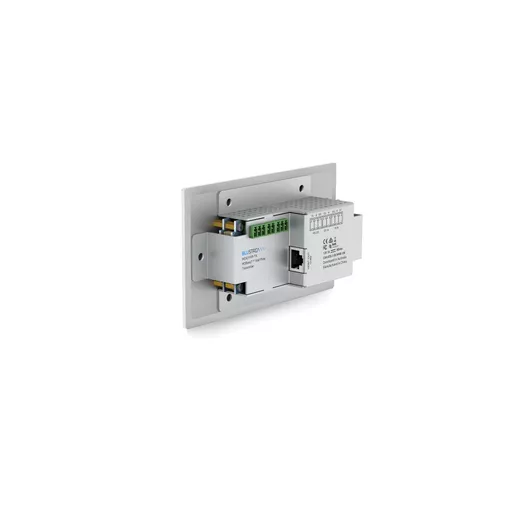

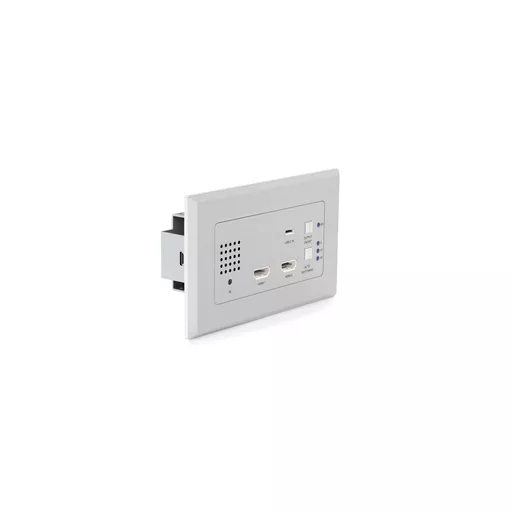

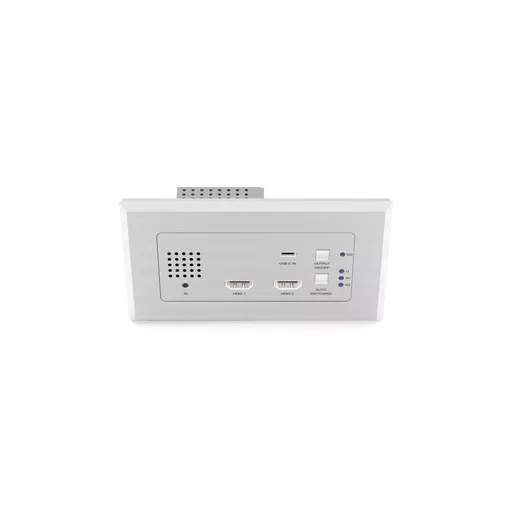

2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter - HDMI, USB-C and RS-232 / IR up to 70m (4K up to 40m), Manual / Auto Source Switching, Advanced EDID Management



The HEX31WP-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0). The HEX31WP-TX features both manual or automated source selection and includes display on/off control via CEC, RS-232 and IR (via compatible HDBaseT™ Receivers / Matrix). The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.





Key Features



  • Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI at 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Input selection via front panel, IR and RS-232
  • Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ Receiver
  • Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
  • Bi-directional RS-232 pass through
  • Supports IR pass-through to HDBaseT™ device
  • Compatible with all Blustream HDBaseT™ Receiver / Matrix products *
  • Magnetic faceplate surround allowing both UK & EU back box compatibility
  • HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device



Specifications



  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • IR Input port: 1 x 3-Pin Phoenix connector
  • Product upgrade: 1 x Micro USB female
  • Local power input: 1 x 2-Pin Phoenix connector
  • Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • Backbox Mounting Depth: 40mm (minimum)
  • Shipping Weight:
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 12V/1A DC
