SKU: SY-VWP-24-18G | Brand: SY Electronics

SKU: SY-VWP-24-18G | Brand: SY Electronics

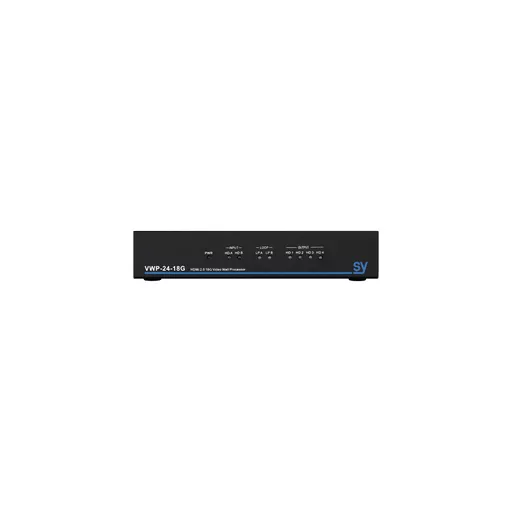

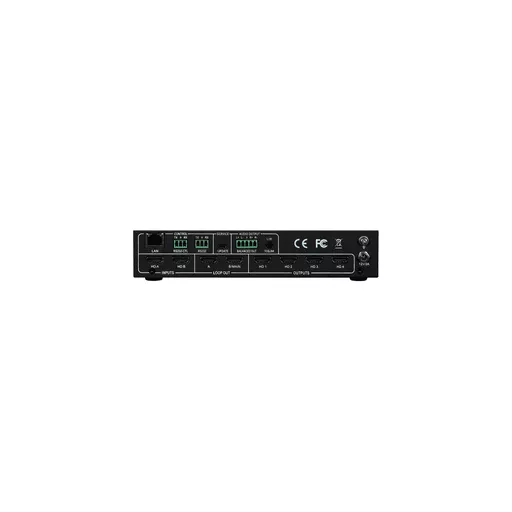

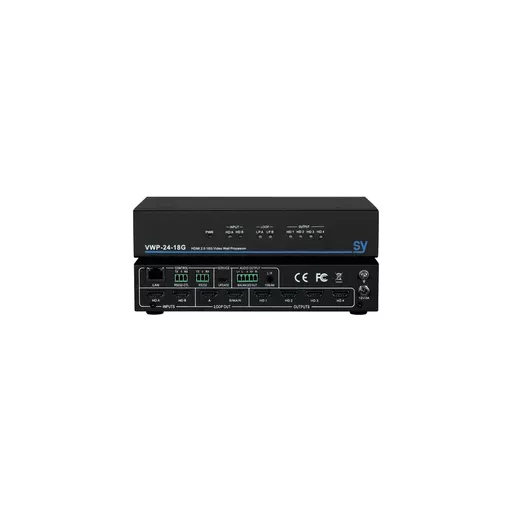

SY Electronics SY-VWP-24-18G 2x input, 4x output HDMI 2.0 Video-Wall processor

SY Electronics SY-VWP-24-18G 2x input, 4x output HDMI 2.0 Video-Wall processor

£818.40  Excl VAT £982.08  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



VWP-24-18G  Dual input Video Wall Processor, with 4x HDMI outputs plus 2 local loop outputs.



Capable of creating up to a 2 x 2 Video Wall as a stand alone unit or cascade with other VWPs to create up to 8 x 8. The two HDMI Inputs can accept all resolutions up to 4K60 4:4:4. Each output has up/down wide range Scaling capabilities up to 4K60 4:4:4 (18G), optimising content on any display. Packed with features to aid system integration, suitable for a variety of applications within live events, commercial, education and the hospitality sector.  ­­



Video-Wall – Simple configuration to create up to a 2 x 2 Video Wall with a single unit, allowing a variety of configurations across 4 screens.



Expandable – Cascade multiple VWPs together to create large Video Wall configurations up to an 8 x 8 grid.



Screen Stitching – Allows adding or removing of selected displays from Video Wall or single display mode.



Bezel Compensation – Optimises and aligns content across multiple displays, reducing visual disruptions caused by physical bezels for a smooth and uninterrupted viewing experience.



Image Rotate – Rotate 180° to accommodate for image orientation when flipping displays.



Scenes – The ability to recall up to 10 memory pre-sets via the ‘Load Scene’/‘Save Scene’ commands, allowing you to switch between saved scene configurations.



18G Scaler – Up/down scaling up to 4K60 4:4:4 (18G). The built in Scaler enables all outputs to be scaled to most suitably match the target displays’ optimum resolution. Wide choice of 16 different Scaling options.



Audio Formats – Supported major formats including: 2.0 channel, 5.1 channel LPCM, Dolby, AC3, DTS.



De-embedded audio – Analogue balanced L+R and L/R unbalanced, Optical Mini-Toslink S/PDIF.



Test Pattern Generator – A built in test patten can be used for system commissioning, from image testing to cable link tests.



EDID Management – 16 built in pre-configured EDID memory positions to suite a variety of needs.



Control – The device can be controlled via RS232 or LAN. When cascading, each device can be assigned a unique ID for direct control.



PC APP – A dedicated PC Tool program is available for quick and easy configuration, this includes fine tune PQ per output/CEC control.



Features



  • Inputs: 2x HDMI 2.0, Outputs: 4x HDMI 2.0
  • Loop Outputs: 2x HDMI 2.0
  • Supports all resolutions up 4K60 4:4:4
  • 4K wide range Up/Down Scaling
  • Dynamic single or multiple Video Wall capabilities
  • Cascade or daisy-chain
  • CEC control
  • Memory pre-sets
  • Bezel Compensation
  • Screen Stitching
  • Audio de-embedding
  • Extensive EDID Management
  • Test Pattern generator
  • HDCP 2.2
  • RS232, TCP/IP, PC App control
