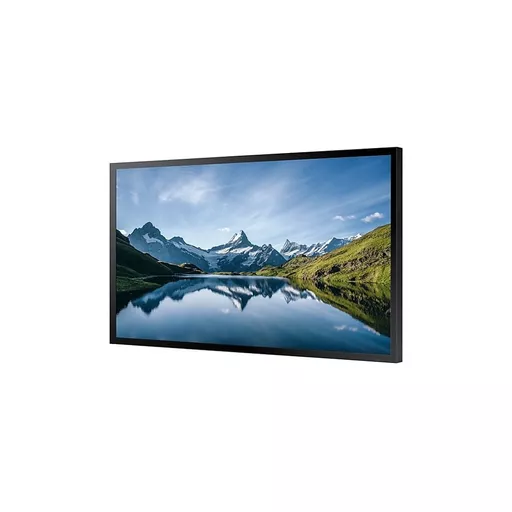

Samsung OH46B / LH46OHBEBGB/EN 46 Inch 1080p Outdoor Smart Signage Display with 4000 cd/m² Brightness, IK10 Magic Protection Glass, and IP56-rated Protection
Samsung’s OH46B / LH46OHBEBGB/EN Display, part of the OHF Series SMART Signage delivers concise communication for customers, with it's bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH46B is packed with robust hardware, ensuring longevity and flexibility.
- UL-verified for outdoor visibility with greater brightness than 3,500nit and 24/7 performance
- Advanced colour accuracy and brightness, creating vivid content
- Enhanced visibility with anti-reflection technology by Magic Protection Glass
- Prevent humidity for optimal performance with hidden fans in the downside of the display
Clear and vivid anytime, anywhere
The OH46B is UL-verified for outdoor visibility with brightness levels over 3,500nits. Its 24/7 performance and polarization technology eliminate display blindness from polarized lenses and delivers continuously crisp content with a built-in auto brightness sensor that adapts to external lighting.
Bright and vivid colours for accurate communication and delivery
The OH46B delivers advanced colour accuracy and brightness, creating vivid content through enhanced colour reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OH46B’s uncompromised picture quality will be sure to capture customer attention.
Enhanced visibility with anti-reflection technology
Samsung OH46B is enhanced by Magic Protection Glass, which utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer. * The total reflection rate is based on internal measurements conducted by Samsung.
Optimized protection in a variety of outdoor conditions
With certified IP56-rated protection, OH46B delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance. * IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).

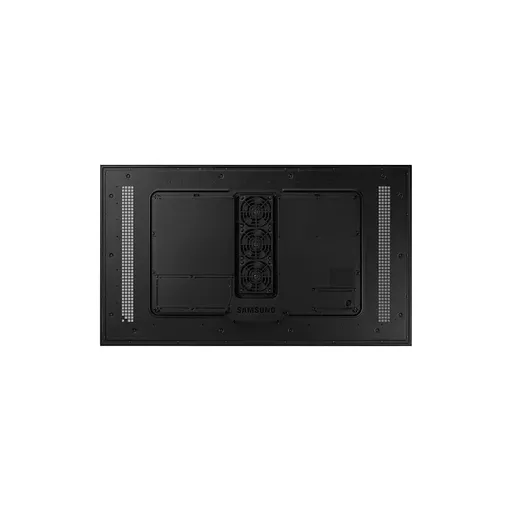

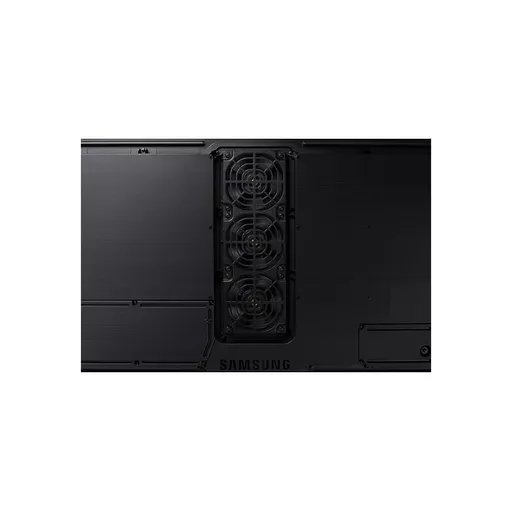

Prevent humidity for optimal performance with newly added fans
With four newly added, hidden fans in the downside of the display, the OH46B reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans enable seamless operation.
Robust durability for screen safety
Fitted with tempered Magic Protection Glass, the Samsung OH46B provides durability that is IK10-rated, ensuring advanced safety and protection against external impact. This ensures the product is safe against unexpected damage, giving store manager better peace of mind. * The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.

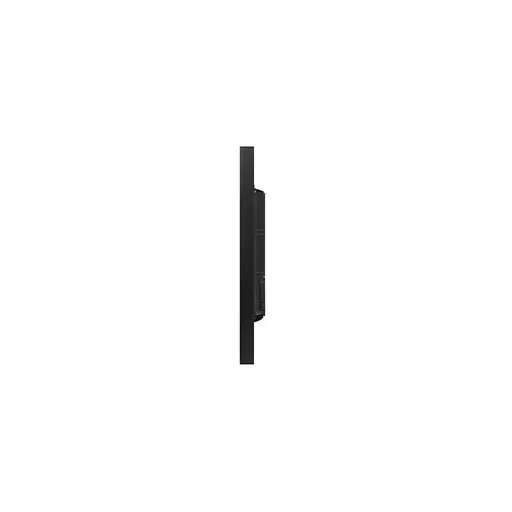

Powerful performance with slim design
A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, damage defence and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.
Smooth and seamless content playback
The embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers. * MagicINFO license must be purchased separately.
Powerful, protective security
The OH46B uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimization of security attacks.
Specifications
Display |
Touchscreen |
No |
Display technology |
VA |
Display diagonal |
116.8 cm (46") |
Display resolution |
1920 x 1080 pixels |
Display brightness |
3500 cd/m² |
HD type |
Full HD |
Response time |
6 ms |
Contrast ratio (typical) |
6000:1 |
Viewing angle, horizontal |
178° |
Viewing angle, vertical |
178° |
Pixel pitch |
0.53 x 0.53 mm |
Vertical scan range |
24 - 75 Hz |
Horizontal scan range |
30 - 136 kHz |
Anti-glare screen |
Yes |
Colour saturation |
72% |
RGB colour space |
NTSC |

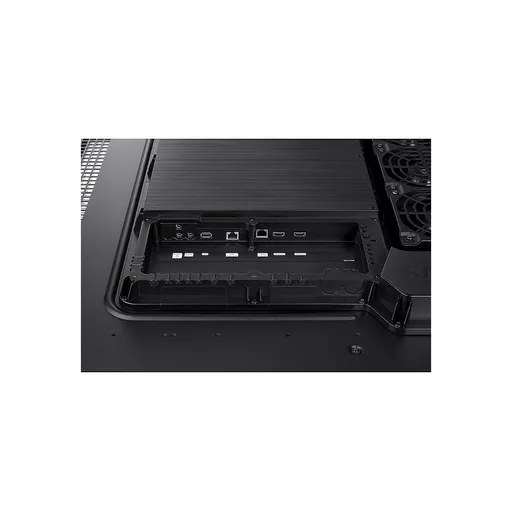

Ports & interfaces |
USB port |
Yes |
HDMI version |
2.0 |
Wi-Fi |
No |
Ethernet LAN |
Yes |
HDMI ports quantity |
2 |
DVI port |
No |
Ethernet LAN (RJ-45) ports |
2 |
RS-232 interface |
Yes |
USB ports quantity |
1 |
HDMI input ports quantity |
2 |
Design |
Product design |
Digital signage flat panel |
Placement supported |
Outdoor |
Orientation |
Horizontal/Vertical |
Product colour |
Black |
Panel mounting interface |
995 x 500 mm |
VESA mounting |
Yes |
Anti-glare screen |
Yes |
Performance |
Purpose |
Universal |
Operating hours (hours/days) |
24/7 |
International Protection (IP) code |
IP56 |
HDCP |
Yes |
HDCP version |
2.2 |
Wi-Fi |
No |
Power |
Power consumption (sleep) |
0.5 W |
Power consumption (typical) |
430 W |
AC input voltage |
100 - 240 V |
AC input frequency |
50/60 Hz |
Computer system |
Computer system |
Yes |
Computer system type |
System on Chip (SoC) |
Operating system installed |
Tizen 5.0 |
Internal storage capacity |
8 GB |
Built-in processor |
Yes |
Weight & dimensions |
Width |
1069 mm |
Depth |
85 mm |
Height |
623.6 mm |
Weight |
36 kg |
Packaging data |
Package width |
1156 mm |
Package depth |
200 mm |
Package height |
713 mm |
Package weight |
40.5 kg |
Operational conditions |
Operating temperature (T-T) |
-30 - 50 °C |
Operating relative humidity (H-H) |
10 - 80% |
Technical details |
VESA mounting |
Yes |
Glass protection |
Yes |
Thin Client |
Operating system installed |
Tizen 5.0 |
Internal storage capacity |
8 GB |
Other features |
Glass protection |
Yes |
Wi-Fi |
No |
Display technology |
VA |
