SKU: APPC-10XP | Brand: ProDVX

SKU: APPC-10XP | Brand: ProDVX

APPC-10XP | 10" Android Touch Display PoE

APPC-10XP | 10" Android Touch Display PoE

 Order Before 4pm for Next Working Day Delivery*

£599.00  Excl VAT £718.80  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder

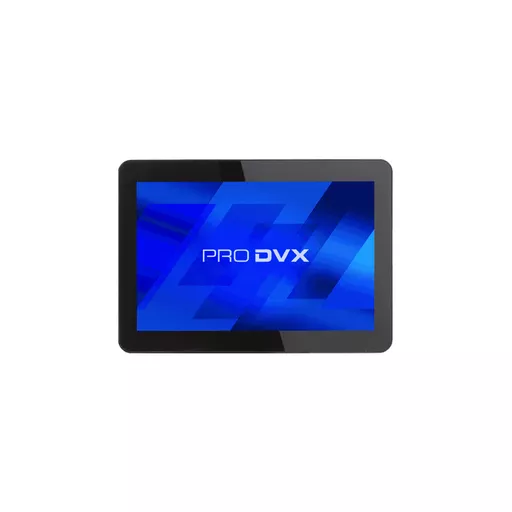

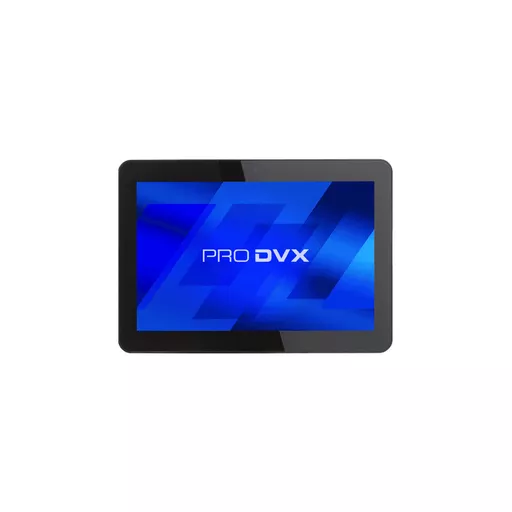

The ProDVX APPC-10XP is an Android Panel PC with a 10.1” Touch Display and Power over Ethernet (PoE). The ProDVX APPC-10XP comes with Android 8 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module, Motion Sensor or VESA mounting brackets.

Panel
Panel type TFT LCD IPS
Resolution 1280 x 800
Aspect Ratio 16:10 wide
Backlight Edge-LED backlight
Brightness 500 cd/m2
Viewing Angle H 160° / V 160°
Contrast Ratio 800 : 1
Touch Type 10 point touch projected capacitive
System
CPU Cortex A17, Quad Core, RK3288
GPU MALI T764 / 3D Graphic Engine (4K)
System Memory 2 GB DDR3 SDRAM
Internal Storage 16 GB eMMC Flash
External Storage SD-Card Slot (door)
OS Android 8 (optional Linux)
LED Light Bar N/A
I/O Ports Micro-USB,USB,HDMI,GPIO Port,3.5 mm audio-out,RJ45,12 V DC-IN
Network LAN RJ45 10/100/1000 Mbps LAN
WiFi 802.11 a/b/g/n/ac
Bluetooth BT 4.2
Power over Ethernet (PoE) IEEE 802.3at (PoE+)
Integrated NFC N/A
Camera N/A
Video/Audio
Video Support 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
Audio Support AAC,ASF,MP2,OGG,WAV,WMA
Photo Support JPG,JPEG,PNG,BMP,GIF
Microphone YES
Speakers 2 x 2 W
Audio Jack Output 3.5mm YES



Physical
Housing Plastic
Color Black
Weight 650 g
Dimensions 256 x 181 x 27 mm
Mounting / VESA VESA 75
Power Supply 12 V / 2 A (EU, UK, US)
Power Usage 10 ~ 20 Watt
Other
OSD Language Multi OSD language
Clock Battery (for RTC) Lithium‐ion non‐rechargeable coin
Storage Temp ‐10 ~ 55 degrees C
Working Temp 0 ~ 40 degrees C
Storage/Working Humidity 10 ~ 90 % non-condensing
MTBF 50,000 hours demonstrated
Standard Warranty 3 years
Certifications FCC, CE, RoHS
