SKU: 8410 | Brand: Loxit

SKU: 8410 | Brand: Loxit

Hi-Lo Mono 500 Electric Heavy Duty Wall to Floor Screen Lift 75″-105″ max 170kg

Hi-Lo Mono 500 Electric Heavy Duty Wall to Floor Screen Lift 75″-105″ max 170kg

£1,399.59  Excl VAT £1,679.51  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



Description

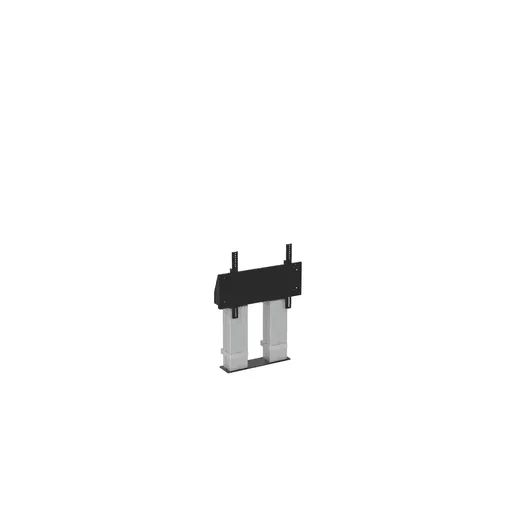

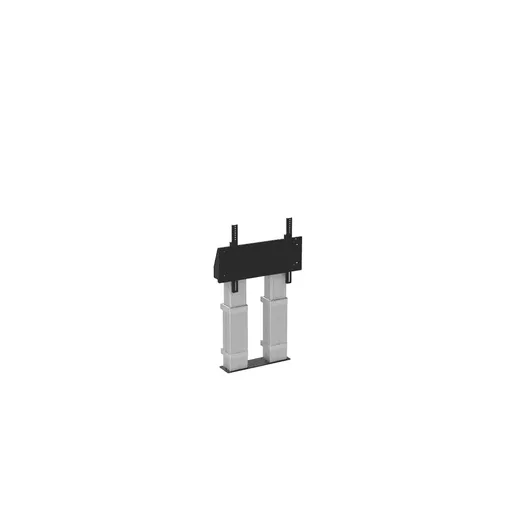

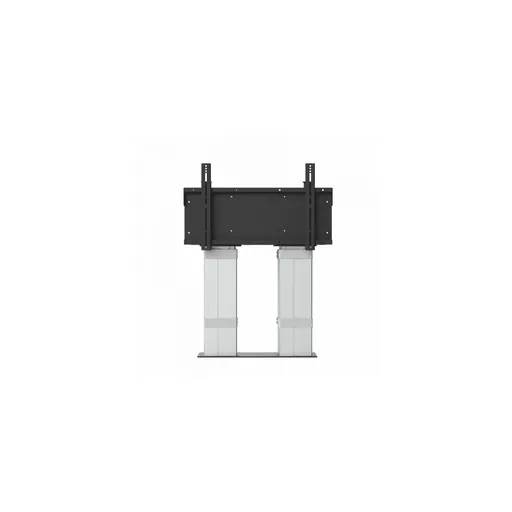

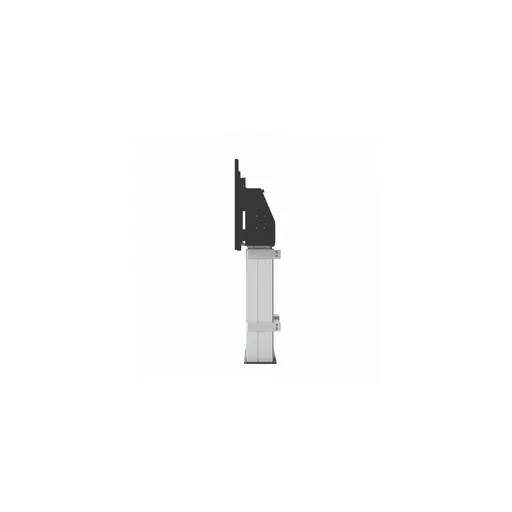

Dual column wall to floor mounted screen lift.



Heavy duty electric operation with reinforced welded brackets for displays and touch screens up to 105″.



Max screen weight 170kg.



Smooth electrical operation raises and lowers the screen by 500mm, allowing all users access to the display.



Suits VESA patterns up to 800mm wide x 440mm high.



For VESA mount patterns to 800mm x 600mm high use optional bracket set 8975.



Height from floor to centre of screen:

Lowered 872mm

Raised 1372mm



Includes integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.



Includes 3m hi-vis mains input cable for additional safety.



Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.



Cables are tidied away within the mount head for a professional installation.



Ready assembled – simply screw the universal mount brackets onto the screen and hang on the trolley. Saves installation time and money.



Optional rubber bumper for use in nurseries and for base protection.



For additional safety when being used in vulnerable environments such as with young children in nurseries, those in SEN environments or wheelchair users, add Hi-Lo® Anti-Crush Bar for Flat Screen 1.00m code 8973. The discrete pressure sensitive bar is adhered to the underside of the screen and cuts out power to the motor at the slightest contact.



Features

  • Very stable and durable twin column electric trolley based lift for LED/LCD screens and displays.
  • Max screen weight is a huge 170kg and max screen size is 105″ diagonal.
  • Smooth, quiet electrical operation raises and lowers the screen by 500mm, allowing all users access to the display.
  • Height from floor to centre of screen 872 – 1372mm.
  • Includes integrated 4 way power strip and 2 spare IEC outlets to power the screen and peripherals.
  • Just one cable to the mains socket.
  • Includes 3m hi-vis mains input cable for additional safety. Country specific cables available.
  • Ready assembled – simply screw the universal mount brackets into the back of the screen and hang on the mount – saves installation time and therefore money.



Technical

500mm electric height adjustment.



Height from floor to centre of screen:

Lowered 985mm

Raised 1485mm



Max screen size 84″



Max screen weight 170kg



Includes integrated 4 way UK power strip.



Includes 3m mains input cable.
