SKU: IFE652-2H | Brand: Vestel

SKU: IFE652-2H | Brand: Vestel

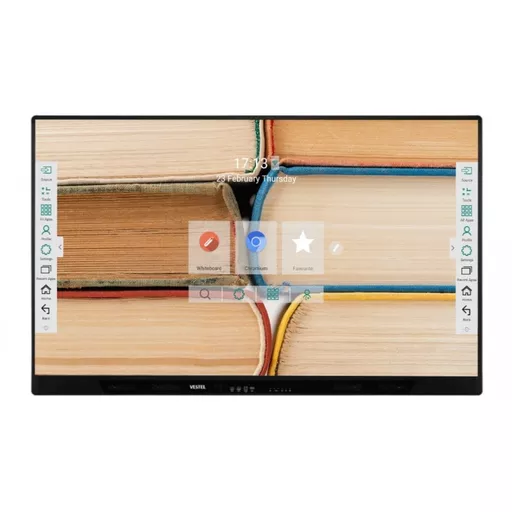

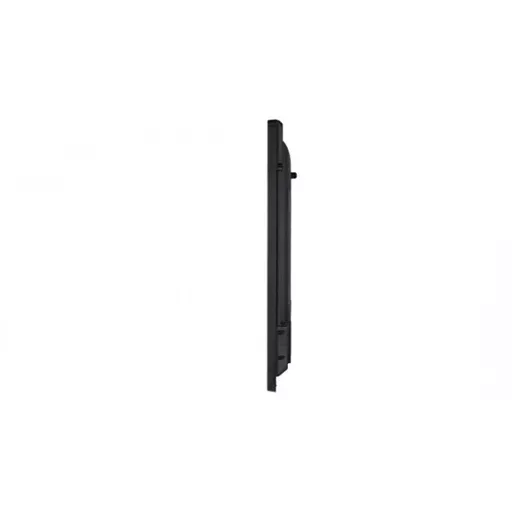

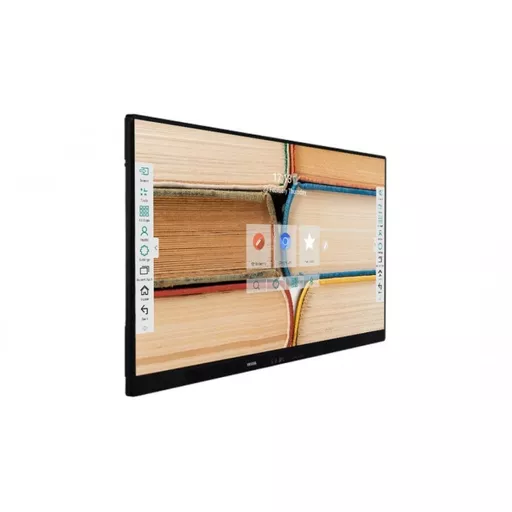

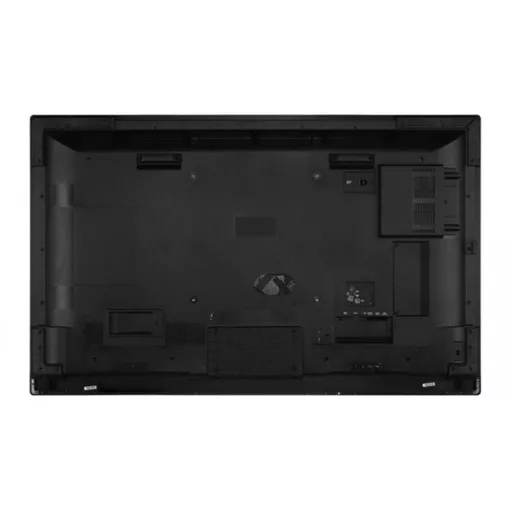

Vestel 65” IFE652 4K UHD Interactive Display with Android 9

Vestel 65” IFE652 4K UHD Interactive Display with Android 9

 Order Before 4pm for Next Working Day Delivery*

£635.88  Excl VAT £763.06  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



 Vestel 65” IFE652 4K UHD Interactive Display with Android 9



  • Resolution : 3840x2160 (UHD)
  • Brightness : 350 cd/m²
  • Touch Points : 20 Points Multi Touch
  • Touch Techology : IR Touch
  • Interface : HDMI 2.0 / USB / RS232 / RJ45
  • Application Area: Education

New Model awaiting full specification from manufacturer

Model IFE651/1
Panel
Screen Size 65"
Panel Technology Direct-Type LED
Brightness (typical) 350 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 4000:1
Dynamic Contrast Ratio 35000:1
Panel Life Time ( Min. ) 30000 Hrs
Response Time (typical) 8 ms
Active Area (H x V) 1428 x 804 mm
Pixel Pitch (H x V) 0.372 x 0.372 mm
PPI (pixel per inch) 68
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 8%
Refresh Rate 60 Hz
Orientation Horizontal
Operation Hours 16/7
Area of Usage Indoor
Built-in System
Mainboard Model 130VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 1xHDMI2.0
Video Output N/A
Audio Input Line In
Audio Output Line Out
External Control Service(RJ12)
USB 1xType A for touch
Touch Interactivity
Type of Touch Technology Infrared (IR) Technology
Continuous Touch Points 10 Points
Sensitivity Any touch with finger, gloved hand or pointer
Connectivity HID, TUIO, Flash
Compatibility Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Androi
Orientation Landscape Support
Calibration No need
Accuracy 90%
Reporting Rate Up to 450 fps
Glass Type Anti Glared (AG), 4mm Tempered
Frame Rate Up to 450 fps
Communication USB2.0
Power Supply Mode USB
Supply Voltage DC 5V +/- 5%
Average Current < 400 mA
Response Time < 10 ms
Touch Accuracy +/-2mm (over 90% area)
Touch Durability Unlimited
HID Compatibility Yes USB
Object Sizes for Touch 5 mm
Mechanical
Product Dimensions (WxDxH) 1525 x 116 x 915 mm
Package Dimensions (WxDxH) 1765 x 265 x 1100 mm
Product Weight 34 Kg
Package Weight 43 Kg
Vesa Mounting 400 x 400 mm
Bezel Width B:56 | T:41 | L/R:41 mm
Environmental Conditions
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Power
Power Supply 110 VAC - 240 VAC
Power Consumption
Typical 235W
Deep Standby ≤ 0.5W
Features
Main Features External PC & OPS PC usage
Mechanical Features Front Buttons, Rocker Switch
Speaker 2x16W
Accessory
Standard QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit
Certification
Safety YES
EMC YES
CE YES
