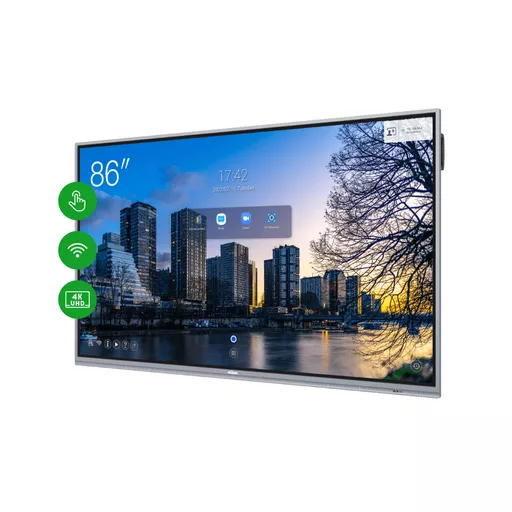

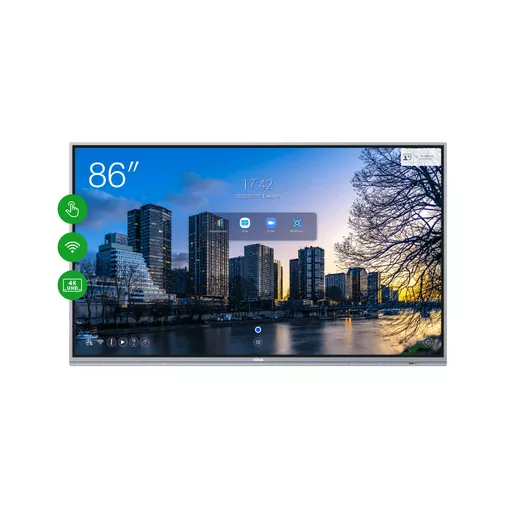

VIVITEK NovoTouch EK 86" 4K-UHD collaborative Touch Panel

Vivitek NovoTouch 86” EK865i 4K Android Interactive Display with 20-Point Infrared Touch, Wireless Screen Sharing, Whiteboard & 5 Year Warranty

The Vivitek NovoTouch EK865i interactive 4K display offer the most complete solution for engaging hybrid meetings and classes. The displays feature NovoConnect Wireless Collaboration, Video Conferencing, BYOM (optional) and NovoDS Digital Signage functionalities. NovoTouch is designed to take business meetings and education sessions to a new level of collaboration and interaction.

NovoTouch Display Features

• 4K resolution for sharing single video content, while in collaboration mode, each split screen is shown in 1080p Full HD.
• In-Plane Switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle.
• The NovoTouch has an Optically Bonded screen that offers better readability, visibility and a larger viewing angle than non-bonded screens.
• Infrared Touch (IR) to ensure flawless touch annotation and smooth gesture recognition. Anti-glare and durable surface protects against scratches or screen damage.
• USB Type C port supports high speed transfer of files while simultaneously transmitting video, audio and power from a single cable.

NovoTouch Wireless Collaboration Features

• Wireless content sharing from any laptop, tablet or smartphone to the central screen (BYOD).
• Supports connections from 64 participants. Split screen allows for 4 participants to present simultaneously.
• The NT Minutes app allows to record any actions taken on the NovoTouch screen.
• NT LiveScreen duplicates the NovoTouch screen across the network to multiple displays enabled with NT LiveReceiver in different rooms. This allows a large group of people to be split across breakout rooms and view the same content.
• Bring Your Own Meeting (BYOM) as optional upgrade to enable the meeting moderator to control meeting peripherals such as Cameras or audio devices directly from their laptop. The BYOM driver is available for Windows and MacOS.
• Picture-in-Picture (PiP) is perfect for multi-taskers as it allows to keep an eye on a floating window while continuing to work on another App.

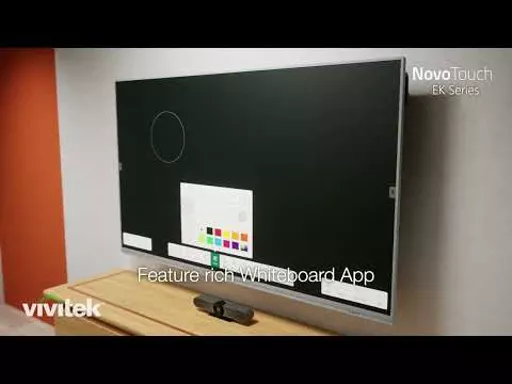

• Interactive whiteboard app offers mind maps, sticky notes and geometric tools.

NovoTouch Digital Signage Features

• The embedded NovoDS digital signage will transform NovoTouch into a digital information board.
• Create and manage digital signage in 3 simple steps Through NovoDS Studio.
• Optional NovoDS Cloud based content creation and device management with role based access and interactive widgets.

NovoTouch - Simple and Easy to Connect

Software & App

Wireless screen sharing & collaboration from desktop, laptop / mobile devices

Launcher

Wireless sharing & collaboration with Launcher from laptop

Web Browser

Instantly connect via the web browser to wireless share & collaborate your laptop screen

Native Screen Mirroring

Direct mirroring from Windows Miracast/ iOS Airplay/ Google Cast

Display

• Panel Size: 86”
• Type/Technology: Backlit D-LED (IPS- ADS)
• Brightness: 500 cd/m²
• Contrast Ratio: 5000:1
• Native Resolution: 4K Ultra-HD (3840 x 2160)
• Viewing Angle (H/V): 178° / 178°
• Aspect Ratio: 16:9
• Refresh Rate (Hz): 60 Hz
• Estimated Life Time: 50,000 hours | Digital Light Sensor embedded to auto detect ambient light and adjust display brightness for energy saving
• Display Colour (Bit): 1.07 Billion
• Installation Orientation: Landscape
• Daily Operation (Hours/Days): 16/7

Touch

• Technology: Infrared Touch
• Touch Points: Annotation 10 Points | Finger Touch 20 Points
• Accuracy Finger/Passive Pen: ±1.0mm (Over 90% area)
• Response Time: ≤ 6ms
• Touch Resolution: 32,768 x 32,768
• Surface Protection: 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
• Touch Tools: Finger, Stylus, Glove, Opaque Objects

Operating System

• Operating System Version: Android™ v9 (v11available in 2023)
• Internal Storage: 64GB (eMMC Flash)
• Eternal USB: Yes (FAT32 / NTFS)

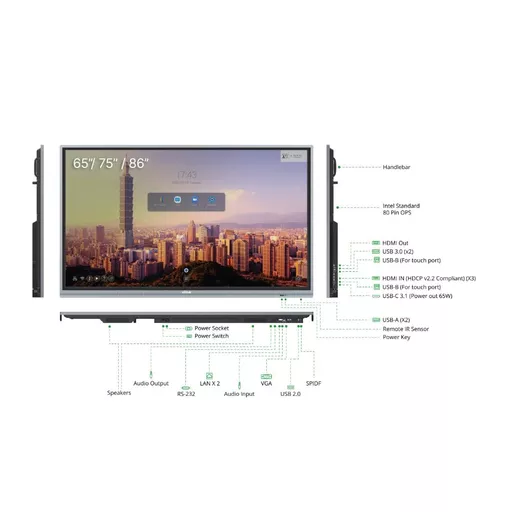

Connectivity

• Input Display: HDMI v2.0 x3(HDCP v2.2 Compliant), USB-C x1, VGA-In (x1)
• Input Audio: Audio-In (3.5mm) x1
• Output Display: HDMI-Out v1.4 x1 1080p@60Hz
• Output Audio: Audio-Out (3.5mm) x1, SPDIF-Out x1
• Internet: LAN (RJ45, 10/100/1000M) x2
• Control: RS232-In x1
• Wireless WiFi: (USB Module) WiFi 6; 802.11 a/b/g/n/ac/ax (2.4GHz/6GHz) USB dongle/ Built-in
• Wireless Bluetooth: V5.0
• I/R Receiver: Front x1 (±25° Angle, >8m Distance)
• USB Front: USB-A 2.0 x2
• USB Side: USB-A 3.0 x3, USB-B 2.0 x2 (For Touch Port), USB-C 3.1 (Power 65W) x1
• USB Bottom: USB-A 3.0 x1, USB-B 2.0 x2 (For Touch Port)

Default Apps

• Wireless Collaboration: Screen mirroring (NovoConnect SW/App), Screen duplication (up to 6) over the corporate network (NT LiveScreen/ NT LiveReceiver), White board (Note), Screen login protection (PIN Code / RFID / NFC Tag), Screen Recording (NT Minutes), BYOM (optional), Google Play, NT App Store
• Platform compatibility (BYOD): Windows, Ubuntu, MacOS, Chromebook, iOS and Win 10 Miracast
• Digital Signage: Digital signage (NovoDS)

Physical

• Expansion Windows (OPS): Intel Standard 80 Pin OPS (Optional)
• Audio Speakers: 16W x2 (Stereo)
• Sensor Light Sensor: Yes
• Device Management Software/Command: Free Software- Remote Manager. DMD, Supports Crestron IP command

Power

• Power Supply (Internal): AC 100 - 240V, 50/60Hz (4.5A)
• Power Consumption: 450W
• Power Standby Mode: <0.5W (Standby)

Physical Characteristics

• Dimension (L x H x D): 1,957.4 x 1,160.1 x 91.4
• Weight: 65.75 kg
• VESA Mounting (FPMPMI): M8 × 25mm, 800 x 400mm
• Colour: Silver

Accessories

• Standard Accessories: AC Power Cord (3m), WiFi 6 USB Module, HDMI Cable,Touch USB Cable, Audio Cable, Stylus (x2), Remote Control (W/Batteries), Documentation Kit, Wall Mount Kit
• Optional Accessories: LauncherPlus, LauncherOne, Sensor Box (including Air Quality / Temperature Detector, Motion Sensor, NFC Reader, Proximity Sensor)

Warranty

• Standard: 3-Year warranty on the panel
• Education: 5-Year warranty on the panel, where end customer is a school, university or training centre. (Education product registration required within 180 days of purchase for extended warranty to be valid.)
