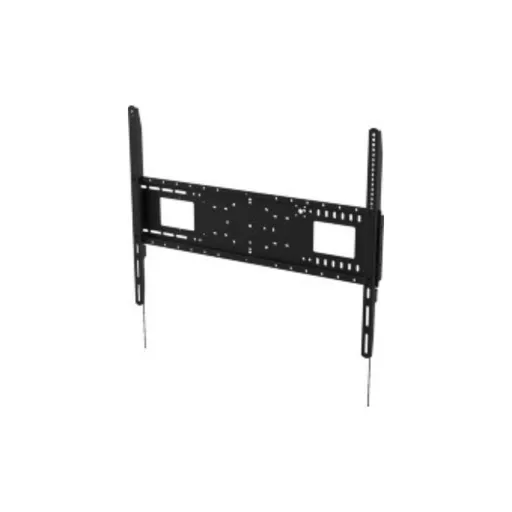

VISION Display Wall Mount VESA 800x600 - VFM-W8X6

Vision’s Vision Flat-panel Mount – Wall range is designed by Vision’s engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W8X6 fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 600 mm tall apart.

Heavy Duty

Interactive flat panels are large and very heavy. Vision’s VFM-W8X6 uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.

For 47-90" Displays

Fits most displays from 47-90″. Note: curved screens are not supported by this mount.

Designed for Professionals

A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.

Side by Side

Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.

Optional Rotation

A rotary bearing assembly can be added, allowing the display to be turned from portrait to landscape. For this reason the vertical arms can be fixed to the horizontal rail from behind so the display doesn’t slide down the rail when the display is turned to portrait.

Video Conference Shelf

An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha’s VVC-1000 – which fixes securely in place, and Barco’s Clickshare base stations. With VESA 100 x 100 mm holes on the vertical section, product’s like Heckler’s Zoom Room iPad enclosure can be fixed.

Everything Included

Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

Meets Regulations

The thin design holds the display just 36 mm / 1.4″ off the wall.This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

Latches Securely

The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.

Hide Media Player

Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.

Side Shelf

An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display.

Logitech Rally Brackets

Additional optional brackets are available to fix Logitech’s Rally system hubs and soundbar to the optional video conference shelf.

• PRODUCT DIMENSIONS

• 845 x 635 x 36 mm / 33.3″ x 25.0″ x 1.4″ (width x height x depth)

• PACKAGED DIMENSIONS

• 880 x 235 x 40 mm / 34.6″ x 9.3″ x 1.6″

• PRODUCT WEIGHT

• 5.8 kg (12.9 lbs)

• PACKAGED WEIGHT

• 6.8 kg (15.0 lbs)

• SAFE WORKING LOAD

• 130 kg (287 lbs)

• CONTRUCTION MATERIAL

• Cold-rolled Steel 3 mm (0.12")

• COLOUR

• Black

• VESA SIZES

• 800 x 600 mm
  800 x 500 mm
  800 x 400 mm
  600 × 600 mm
  600 x 500 mm
  600 × 400 mm
  500 x 500 mm
  500 x 400 mm
  400 x 600 mm
  400 × 400 mm
  400 x 300 mm
  400 × 200 mm
  300 × 400 mm
  300 × 300 mm

• ACCESSORIES INCLUDED

• 4 x M5 16 mm screw
  4 x M6 16 mm screw
  4 x M6 25 mm screw
  4 x M8 16 mm screw
  4 x M8 35 mm screw
  2 x M8 45 mm screw

• WARRANTY

• Lifetime return-to-base

• COMPLIANCES

• RoHS, ADA (Americans with Disability Act) Compliant

• ORDER PART CODE

• VFM-W8X6 [EU SAP: 4934295 / US SAP: 13557607]

• OPTIONAL ADD-ONS

• VFM-WRT Rotating Assembly [EU SAP: tba / US SAP: tba]
  VFM-WSS Side Shelf [EU SAP: 4857149 / US SAP: tba]
  VFM-WVC Video Conferencing Shelf [EU SAP: 5048878 / US SAP: tba]

• COUNTRY OF ORIGIN

China

Manufacturers datasheet
