VISION Techconnect 3m Cable Pack - TC3-PK3MCABLES

SKU: 3245686 | Brand: Vision

VISION Techconnect 3m Cable Pack - TC3-PK3MCABLES

Order Before 4pm for Next Working Day Delivery*

£29.50 Excl VAT £35.40 Inc VAT

Qty

Product Wishlist & Compare Placeholder

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

Installation Services

Purchase Orders

Public Sector Frameworks

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder

Description

For 99% of professional AV installations the same set of modules are required, so Vision offer a simple package that contains a basic selection of modules as a starting point. Just select the length of the cable package you need to go with it from:

· 3m (9 ft)

· 5m (16 ft)

· 10m (33 ft)

· 15m (49)

Techconnect3

Techconnect is a modular audio-visual faceplate family engineered especially for AV installers.

A “surround” which comes in two parts fits to a backbox (or “mudring” if your wall is hollow), then the modules fix in place to complete the installation. Techconnect is based around standard UK backbox sizes, and Vision also offers mounting hardware for other countries.

Improved Fit and Finish
Techconnect3 has more space behind the modules stash cables, and narrower and more even gaps between modules.

Matt White
Pure white with a chiselled profile, Techconnect3 also has 11 mm of flat space above and below the connectors for information or company branding stickers.

Stronger
Techconnect3 has shorter modules and extra ribbing to reduce module flex. On parts where flex is desirable to avoid shattering ABS plastic is used.

Screw-In Modules
The modules have a tab that hooks into the surround at the bottom, then a couple of turns of the pre-installed screws locks the modules into place

Passive and Active Modules
Vision offer pass-through modules for AV, IT, and pro-audio applications, and active modules which boost USB or extend HDMI, VGA, and USB signals over CAT6 cable.
You can even install a powerful audio amplifier module or a universal controller module right next to the connectivity modules. The faceplate is close at hand and securely fastened in place.

Plug-In Cables
Vision offer professional cables. VGA, Phono (RCA), and Minijack Techconnect cables have phoenix connectors on one end which plugs right in to the rear of the modules. These phoenix connectors can easily be removed to pull cables.

EDID Support
Vision’s VGA cable included the SDA and SCL data lines to support EDID handshakes which allows the display device to communicate its supported display modes.

No Soldering
Faceplates that require soldering take time build onsite, and – even for experts – create a possible point of failure in the system. Techconnect de-risks an installation.

3-Year Warranty
You can’t afford issues, and neither can we. Vision is totally focused on offering reliable products.

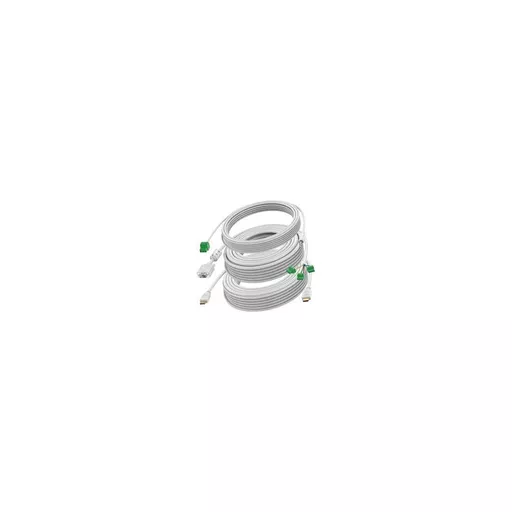

Cable Package Contents

1 x VGA

White, Ferrite core to stop RF interference. A moulded connector on one end, and a male phoenix connector on the other end which can be plugged directly into the rear of module. Gold-plated male to male HD15 (15 pin) connector. Sheath PVC, outer diameter: 8.0 mm, Conductor thickness: 28AWG, Drain wire laid between aluminum mylar and braid, Al-Mg alloy wire overall, >65% coverage braided shield. Impedance: at 10MHz, 75Ω (coaxial cable), Resistance 20℃(Ω/1000m) 237.25.

1 x 3.5mm Minijack

High-grade white installation cable. A moulded connector on one end, and a male phoenix connector on the other end which can be plugged directly into the rear of a Techconnect faceplate module.

1 x HDMI

White, 4K compliant, High-Speed (Category 2) with Ethernet, HDMI 1.4, Gold-plated HDMI-A connectors, Sheath: outer diameter: 9.5mm, Conductor thickness: ≤ 5 m 28 AWG (American Wire Gauge) / 10 m 26 AWG / 15 m 24 AWG. Sheath outer diameter: ≤ 5 m 7.3 mm (≤16.4 ft 0.29″) / 10 m 8.0 mm (32.81 ft 0.31″) / 15 m 9.5 mm (49.21 ft 0.37″).

PACKAGE DETAILS:

CARTON DIMENSIONS:
3/5m Cable Package: 200 x 200 x 90mm (7.87″ x 7.87″ x 3.54″)
10m Cable Package: 220 x 220 x 120mm (8.66″ x 8.66″ x 4.72″)
15m Cable Package: 250 x 250 x 140mm (9.8″ x 9.8″ x 5.51″)

PACKAGED WEIGHT:
3m Cable Package: 1.0kg / 2.2lb
5m Cable Package: 1.35kg / 2.97lb
10m Cable Package: 2.2kg / 4.85lb
15m Cable Package: 3.73kg / 8.22lb

CABLES COMPLIANCES: RoHS, WEEE, CE/EMC, FCC
