Epson EB-685W Projector
Please call us on 0800 170 7012 for Education Only Price!
HD-ready classroom projector
Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
Key Features
- Up to 100-inch display and outstanding quality: HD-ready WXGA resolution with Epson 3LCD technology
- Reliable: Improved reliability and a longer lamp life
- Wireless Connectivity (Optional): Allows content to be shown from a range of devices
- Long lamp life: Up to 10,000 hours in eco mode
- Ultra short throw projection: For maximum installation flexibility
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors1.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App2.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.

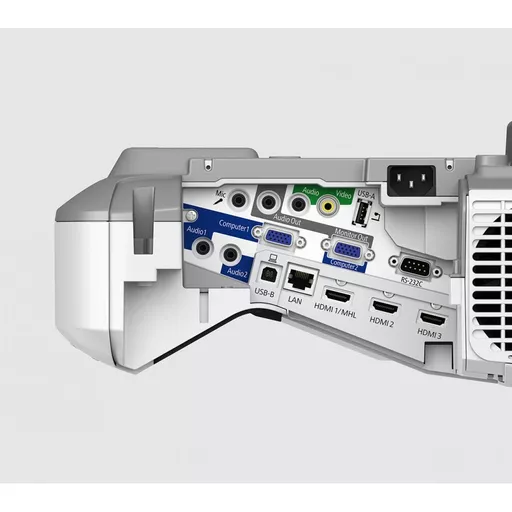

Interfaces
USB 2.0 Type A, USB 2.0 Type B, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Wired Network, Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, MHL
Features
Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Long lamp life, Split-Screen-Function, Wireless LAN capable
What's in the box
CD Manual, Power cable, Quick Start Guide, Remote control incl. batteries, USB cable, Wall hanging bracket, Warranty card
Epson CoverPlus Available
Specifications
Projector |
Number of colours | 1.073 billion colours |
Projector native resolution | WXGA (1280x800) |
Projection distance (wide) | 0 - 0.4 m |
Projection distance (tele) | 0 - 0.6 m |
Native aspect ratio | 16:10 |
Supported aspect ratios | 16:10 |
Screen size compatibility | 1524 - 2540 mm (60 - 100") |
Projection distance | 0.4 - 0.6 m |
Contrast ratio (typical) | 300:1 |
Contrast ratio (dynamic) | 14000:1 |
Zoom ratio | 1.35:1 |
Zoom capability | Yes |
Projector brightness (economic mode) | 2900 ANSI lumens |
Matrix size | 1.5 cm (0.59") |
Keystone correction, vertical | ±3° |
Keystone correction, horizontal | ±3° |
Projection technology | 3LCD |
Projector brightness | 3500 ANSI lumens |
Lamps |
Lamp power | 250 W |
Light source type | Lamp |
Service life of light source | 5000 h |
Service life of light source (economic mode) | 10000 h |
Light source |
Lamp power | 250 W |
Light source type | Lamp |
Service life of light source | 5000 h |
Service life of light source (economic mode) | 10000 h |
Lens system |
Zoom ratio | 1.35:1 |
Zoom capability | Yes |
Focus | Manual |
Focal length range | 0 - 3.76 mm |
Digital zoom | 1.35x |
Scanning frequency |
2D/3D frequency image | 100 - 120 Hz |
Video |
Video processing | 10 bit |
Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
Colour modes (2D) | Cinema, Dynamic |
Full HD | No |
HD-Ready | Yes |
3D | No |
Audio |
Built-in speaker(s) | Yes |
Number of built-in speakers | 1 |
RMS rated power | 16 W |
Ports & interfaces |
Mobile High-Definition Link (MHL) | Yes |
VGA (D-Sub) ports quantity | 3 |
HDMI ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 2 |
USB connector type | USB Type-A, USB Type-B |
Composite video in | 1 |
Audio (L/R) in | 1 |
Headphone outputs | 1 |
Microphone in | Yes |
Serial interface type | RS-232 |
RS-232 ports | 1 |
DVI port | No |
AC (power) in | Yes |
Network |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
Storage |
Card reader integrated | No |
Sound emission |
Noise level | 35 dB |
Noise level (economic mode) | 28 dB |
Technical details |
Colour modes (2D) | Cinema, Dynamic |
Product colour | Grey, White |
On Screen Display (OSD) | Yes |
Air filter | Yes |
Lamp power | 250 W |
Products per pallet | 12 pc(s) |
Quantity per pack | 1 pc(s) |
Pallet gross width | 80 cm |
Pallet gross length | 120 cm |
Pallet gross height | 141 cm |
Products per pallet layer (UK) | 2 pc(s) |
Products per pallet layer | 2 pc(s) |
Products per pallet (UK) | 12 pc(s) |
Pallet width (UK) | 100 cm |
Pallet length (UK) | 120 cm |
Pallet height (UK) | 141 cm |
Performance |
Password protection | Yes |
Mac compatibility | Yes |
2D/3D frequency image | 100 - 120 Hz |
On Screen Display (OSD) | Yes |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
Noise level | 35 dB |
Noise level (economic mode) | 28 dB |
Air filter | Yes |
Features |
Password protection | Yes |
2D/3D frequency image | 100 - 120 Hz |
On Screen Display (OSD) | Yes |
Noise level | 35 dB |
Noise level (economic mode) | 28 dB |
Air filter | Yes |
Country of origin | Philippines |
Multimedia |
Built-in speaker(s) | Yes |
Number of built-in speakers | 1 |
RMS rated power | 16 W |
Design |
Product type | Ultra short throw projector |
Cable lock slot type | Kensington |
Product colour | Grey, White |
Cable lock slot | Yes |
Placement | Wall |
Display |
Built-in display | No |
Power |
AC input voltage | 220 - 240 V |
AC input frequency | 50 - 60 Hz |
Power source | AC |
Power consumption (typical) | 354 W |
Power consumption (standby) | 0.39 W |
Power consumption (PowerSave) | 310 W |
Packaging data |
Package width | 490 mm |
Package depth | 730 mm |
Package height | 335 mm |
Package weight | 18.5 kg |
Security |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Software |
Mac compatibility | Yes |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
Bundled software | EasyMP Monitor, EasyMP Multi PC Projection |
Other features |
Remote control type | IR |
RS-232 ports | 1 |
Operational conditions |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -10 - 60 °C |
Storage relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 5 - 35 °C |
|
Weight & Dimensions
- Package Width: 490mm
- Package depth: 730mm
- Package height: 335mm
- Weight: 5.7kg
- Width: 367mm
- Depth: 400mm
- Height: 149mm
- Package weight: 18.5kg
