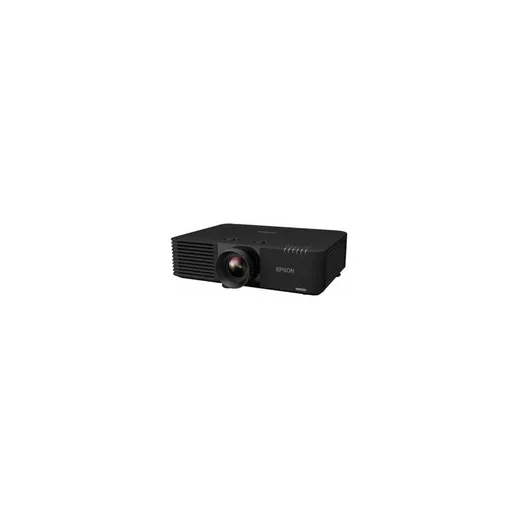

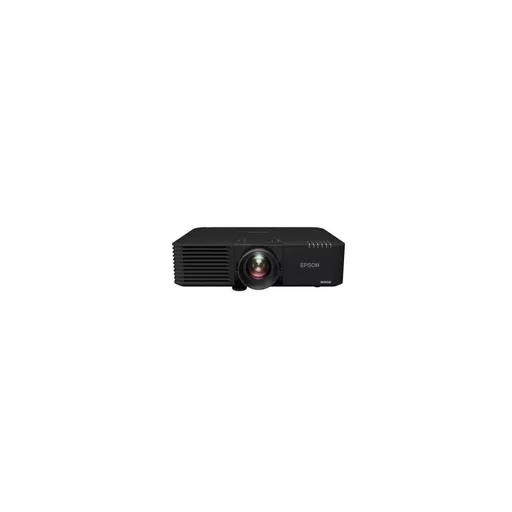

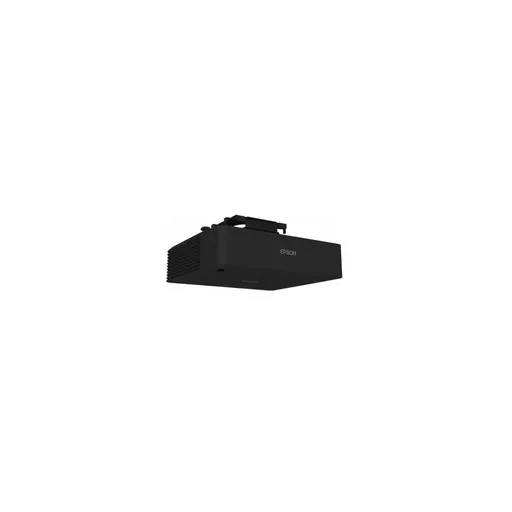

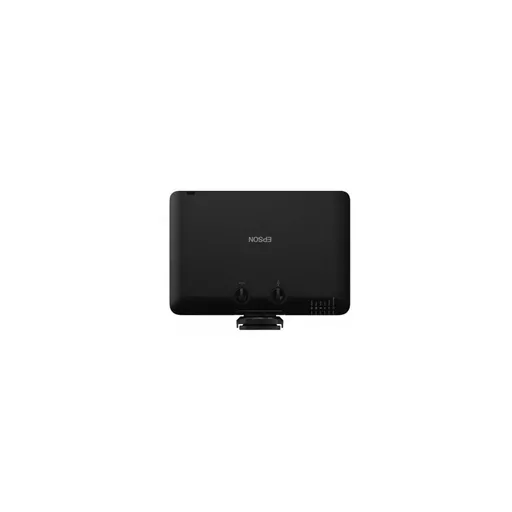

Epson EB-L735U Projector

Laser display solution

The EB-L735U fixed lens laser projector offers 7,000 lumens and is ideal for education, corporate, retail and visitor attractions.

Key Features

• 7,000-lumen brightness: Crisp images and bright colours, even in well-lit rooms
• WUXGA resolution: Sharp Full HD images for excellent clarity
• Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
• Easy, flexible installation: Lightweight and compact design with wide lens shift
• Support social distancing: Scalable display size of up to 500 inches

• As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L735U delivers even more effective, practical and creative display applications across a number of different industries.

  Bright, cost-effective display solutions

  Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L735U offers impressive 7,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L735U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.

  Enhanced connectivity

  This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L735U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.




  Specifications

  Projector
  Number of colours	1.07 billion colours
  Projector native resolution	WUXGA (1920x1200)
  Projection distance (wide)	1.4 - 14.8 m
  Projection distance (tele)	2.4 - 23.8 m
  Native aspect ratio	16:10
  Screen size compatibility	1270 - 12700 mm (50 - 500")
  Projection distance	1.44 - 23.84 m
  Contrast ratio (typical)	2500000:1
  Zoom ratio	1.6:1
  Zoom capability	Yes
  Projector brightness (economic mode)	4900 ANSI lumens
  Matrix size	1.7 cm (0.67")
  Keystone correction, vertical	-30 - 30°
  Keystone correction, horizontal	-30 - 30°
  Projection technology	3LCD
  Projector brightness	7000 ANSI lumens
  Zoom type	Manual
  Lamps
  Light source type	Laser
  Service life of light source	20000 h
  Service life of light source (economic mode)	30000 h
  Light source
  Light source type	Laser
  Service life of light source	20000 h
  Service life of light source (economic mode)	30000 h
  Lens system
  Zoom ratio	1.6:1
  Zoom capability	Yes
  Focus	Manual
  Focal length range	20 - 31.8 mm
  Horizontal lens shift range	-20 - 20%
  Vertical lens shift range	-50 - 50%
  Throw ratio	1.35 - 2.20:1
  Zoom type	Manual
  Video
  Video colour modes	Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB
  Full HD	Yes
  Audio
  Built-in speaker(s)	Yes
  Number of built-in speakers	1
  RMS rated power	10 W

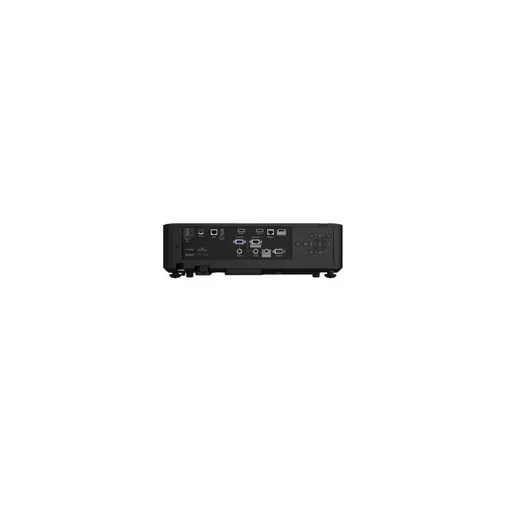

  Ports & interfaces
  HDMI connector type	Full-size
  HDBaseT port	Yes
  USB 2.0 Type-B ports quantity	1
  VGA (D-Sub) ports quantity	2
  HDMI ports quantity	3
  Ethernet LAN (RJ-45) ports	1
  USB 2.0 ports quantity	2
  Serial interface type	RS-232C
  PC Audio out	Yes
  PC Audio in	Yes
  DVI port	No
  AC (power) in	Yes
  Network
  Smart TV	No
  Ethernet LAN	Yes
  Wi-Fi	Yes
  Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
  Ethernet LAN (RJ-45) ports	1
  Miracast	Yes
  Storage
  Card reader integrated	No
  Sound emission
  Noise level	38 dB
  Noise level (economic mode)	27 dB
  Technical details
  Product colour	Black
  HDCP	Yes
  Performance
  Market positioning	Presentation
  Password protection	Yes
  HDCP	Yes
  Noise level	38 dB
  Noise level (economic mode)	27 dB
  Features
  Interactive	No
  Password protection	Yes
  HDCP	Yes
  Noise level	38 dB
  Noise level (economic mode)	27 dB
  Multimedia
  Built-in speaker(s)	Yes
  Number of built-in speakers	1
  RMS rated power	10 W
  Design
  Market positioning	Presentation
  Cable lock slot type	Kensington
  Product colour	Black
  Cable lock slot	Yes
  Display
  Built-in display	No
  Power
  AC input voltage	100-240 V
  AC input frequency	50-60 Hz
  Power source	AC
  Power consumption (typical)	345 W
  Power consumption (standby)	0.3 W
  Power consumption (economy mode)	258 W
  Security
  Cable lock slot type	Kensington
  Cable lock slot	Yes
  Operational conditions
  Operating relative humidity (H-H)	20 - 80%
  Storage temperature (T-T)	-10 - 60 °C
  Storage relative humidity (H-H)	10 - 90%
  Weight & dimensions
  Weight	8.4 kg
  Width	440 mm
  Depth	339 mm
  Height	136 mm
  Packaging content
  Remote control included	Yes
  Manual	Yes
  Cables included	AC
  Batteries included	Yes
  Other features
  Power consumption (economy mode)	258 W
