Epson EH-LS12000B Projector

EH-LS12000B 4K laser projector

Enjoy the big screen experience at home with this 4K (8.3m pixels), Laser, HDR10+ capable projector and Epson's 3LCD technology.

• Impressive sharp display: 4K resolution (8.3mil pixels) and HDR10+ support
• Smooth, fast-moving action: 4K Frame Interpolation and 4K Super Resolution
• Long-lasting solution: Enjoy up to 10 years of entertainment¹ thanks to laser light-source
• Fully motorised optics: Powered zoom, focus and lens shift
• Wide lens shift: Vertical ±96.3% and horizontal ±47.1%

Prepare to be amazed

The ultimate home cinema demands the best in projection. Bring a state-of-the-art cinema experience to your home with Epson’s EH-LS12000B projector. Featuring revolutionary 3LCD laser projection technology, 4K resolution and HDR10+ support this high-definition projector delivers phenomenal image quality and colour brightness that elevates any screening to an enthralling cinematic experience. Every inch of this series has been considered -- there’s no wasted space and no exposed cables, leaving an elegant yet bold surface.

Laser projection at home

As part of a manufacturing philosophy aiming to deliver uncompromising brightness, contrast, colour, and the highest image quality, the EH-LS12000B is equipped with a uniquely designed laser optical engine. With a highly efficient LD package, a newly developed panel, and the optical component optimization that only Epson can provide, it achieves 2,700lm brightness, high contrast, and superb colour reproduction¹.

The laser engine’s long lifespan of up to 20,000 hours² provides virtually worry-free operation. And there’s no waiting for the projector to warm-up or cool down — the projector reaches maximum brightness and turns off almost immediately.

Experience stunning 4K

Make your home centre stage for all the action with advanced pixel-shifting technology that works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K (8.3million pixels) picture without sacrificing picture brightness.

Optimum performance with up to 2,500,000:1 dynamic contrast ratio, 4K-enhancement technology, 3LCD technology, 4K frame interpolation, 4K super-resolution and HDR10+ support.

Powered by the Epson ZX Picture Processor, Scene Adaptive Gamma allows the user to automatically adjust the picture quality based upon the scene information itself. This provides a simple way to get impressive colour and contrast, regardless of the content being displayed.

The evolution of HDR tonal representation

HDR is a key technology emphasized by filmmakers that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.

Bring images to life

Super resolution defines and sharpens blurred images for standard and 4K content bringing incredible detail for true to life images.

Fast-moving 4K video that's clear and smooth

As well as current frame interpolation technology, blurring reduction is now improved. Even watching fast-moving sports or when gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.

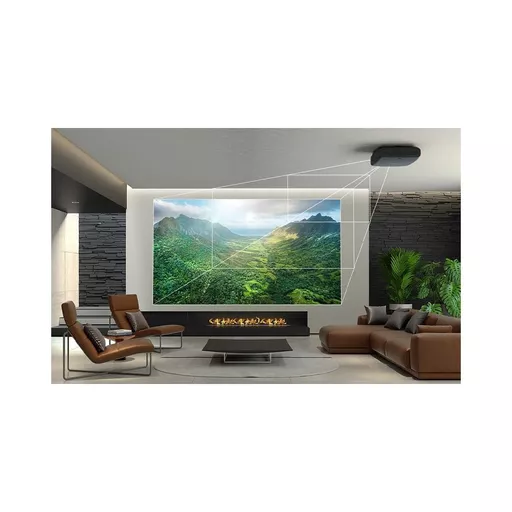

Designed for extraordinary installation flexibility

The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS12000B can be installed in living rooms as well as dedicated home cinemas.

Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.

In addition to the same quietness (25dB/Light output 75%) as previous models, a reduction in high-frequency noise levels creates less distraction for a more immersive experience.

Practical functionality, convenient connectivity

eARC/ARC support

Thanks to ARC, audio can be carried via the projector using an HDMI cable. In addition,

eARC supports high-quality sound3, allowing you to enjoy a beautifully cohesive mix of video and sound in an easier installation.

4K/120fps input support

Optimised support for fast-moving game video output.

Calman ready

Professional quality colour calibration, trusted by colour professionals and filmmakers.

PRODUCT SPECIFICATIONS

TECHNOLOGY

Projection System 3LCD Technology, RGB liquid crystal shutter

LCD Panel 0.74 inch with C2 Fine


Color Light Output 2,700 Lumen In accordance with IDMS15.4

White Light Output 2,700 Lumen In accordance with ISO 21118:2020

Resolution 4K PRO-UHD, 16:9

Contrast Ratio 2,500,000 : 1

Keystone Correction Manual vertical: ± 30 °, Manual horizontal ± 30 °

Colour Reproduction Upto 1.07 billion colours

OPTICAL

Throw Ratio 1.35 - 2.84:1

Zoom Motorized, Factor: 1 - 2.1

Lens Shift Motorized - Vertical ± 96.3 %, horizontal ± 47.1 %

Lens position memory 10 positions

Screen Size 50 inches - 300 inches

Projection Distance Wide/Tele 3 m - 6.4 m ( 100 inch screen

Projection Lens Focal Length 22.5 mm - 46.7 mm

Projection Lens Focus Motorized

CONNECTIVITY

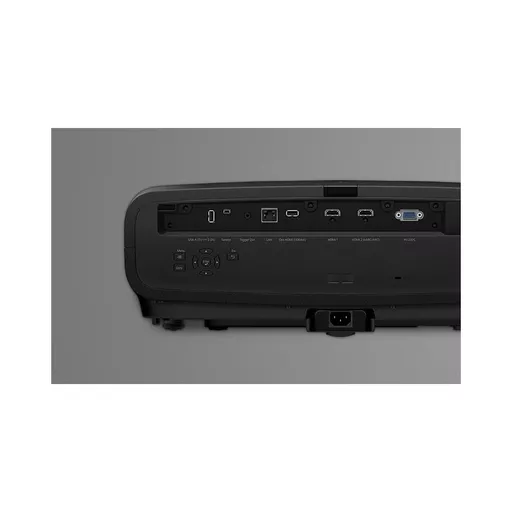

Interfaces USB 1.1 Type A (2x), USB 2.0 Type Mini-B, RS-232C, Ethernet interface (100 Base-TX / 10

Base-T), Trigger out, HDMI ARC, HDMI (HDCP 2.3) (2x)

ADVANCED FEATURES

3D No

2D Colour Modes Dynamic, Natural, Cinema, Bright Cinema, Vivid

Other features 4K enhancement, A/V mute, Digital zoom, Frame interpolation, Horizontal and vertical

keystone correction, ISF certification, Instant on/off, Lens position memory, Long light source

life, Quick Corner, Super resolution

GENERAL

Power consumption 302 Watt, 198 Watt (economy), 0.4 Watt (standby)

Heat Dissipation 1,026.8 BTU/hour (max)

OTHER

Warranty 60 months Carry in or 12,000 h

LOGISTICS INFORMATION

SKU V11HA47040

EAN code 8715946700731

Country of Origin China

WHAT'S IN THE BOX

• Main unit
• Power cable
• Remote control incl. batteries
• User guide
• Cable cover

OPTIONAL ACCESSORIES

• Air Filter - ELPAF62 - EH-LS11/12000 V13H134AB0
• Ceiling Mount (White) - ELPMB22 V12H003B22
• Ceiling Mount (Low profile) - ELPMB30 V12H526040
• Ceiling Pipe (450mm) - ELPFP13 V12H003P13
• Ceiling Pipe (700mm) - ELPFP14 V12H003P14
• Safety Wire - ELPWR01 V12H003W01
