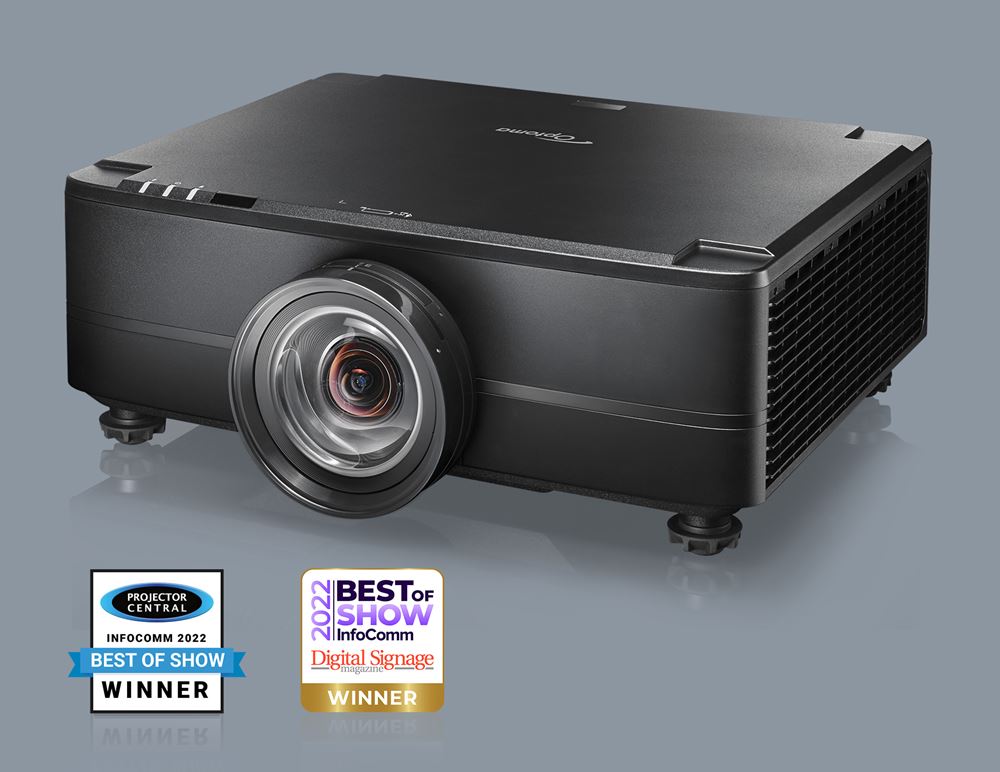

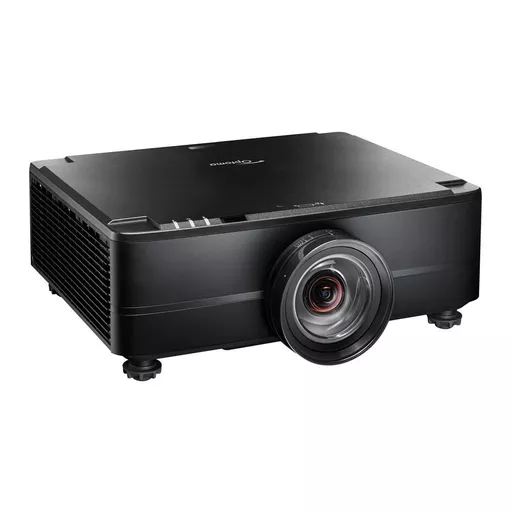

Optoma ZU920TST projector
Ultra bright professional installation laser projector
- 9800 lumen DuraCore laser projector: Ultra bright for immersive installations
- Full motorized lens shift: Ideal for a simple set up
- Large zoom range: Motorized zoom expands placement opportunities
- Long life: Delivers 30,000 hours of virtually maintenance-free operation
At 9800 lumens with 4K and HDR compatibility, the ZU920TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorized zoom and focus, full motorized lens shift, and built-in dual 10W speakers.

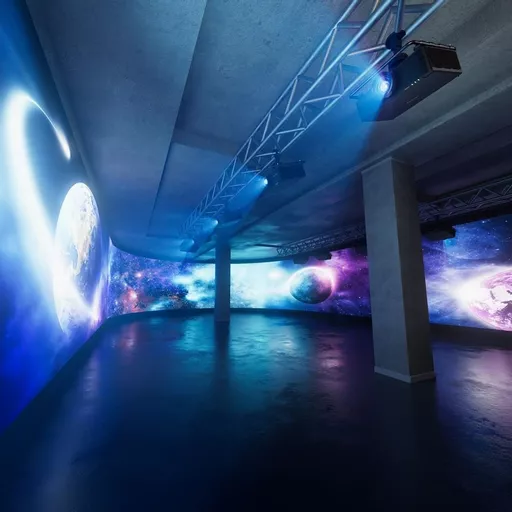

High brightness, color precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping, simulation and immersive installations.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Full lens shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
IP5X Dust resistant optical engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 metres/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.
*For more information please refer to the user manual
Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
*Compatible multi output graphics card with overlap function is required.
Colour Management System (CMS)
Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings for optimal precision.
True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations.
*Contact us for more information
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween
Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible
Allows for easy installation with Extron control systems
Specifications
Projector
Projector native resolution: WUXGA (1920x1200)
Native aspect ratio: 16:10
Supported aspect ratios: 4:3, 16:10, 16:9
Screen size compatibility: 1270 - 7620 mm (50 - 300")
Projection distance: 0.7 - 16.6 m
Contrast ratio (typical): 3000000:1
Zoom ratio: 1.15:1
Uniformity: 95%
Keystone correction, vertical: 30°
Keystone correction, horizontal: 30°
Projection technology: DLP
Projector brightness: 9800 ANSI lumens
Zoom type: Manual
Smart projector: No
Lamps
Light source type: Laser
Service life of light source: 30000 h
Light source
Light source type: Laser
Service life of light source: 30000 h
Lens system
Zoom ratio: 1.15:1
Focal length range: 9.69 - 11.19 mm
Horizontal lens shift range: 0 - 25%
Vertical lens shift range: 0 - 55%
Offset: 50%
Zoom type: Manual
Video
Full HD: Yes
3D: Yes
Audio
Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI connector type: Full-size
HDBaseT port: Yes
HDMI version: 2.0
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Serial interface type: RJ-45, RS-232
PC Audio out: Yes
PC Audio in: Yes
DVI port: No
3D sync port: Yes
Network
Smart TV: No
Ethernet LAN: Yes
Wi-Fi: No
Ethernet LAN (RJ-45) ports: 1
Storage
Card reader integrated: No
Sound emission
Noise level: 38 dB
Noise level (economic mode): 36 dB
Technical details
Product colour: Black
On Screen Display (OSD): Yes
On Screen Display (OSD): languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Performance
On Screen Display (OSD): Yes
On Screen Display (OSD): languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Noise level: 38 dB
Noise level (economic mode): 36 dB
Number of OSD languages: 10
Features
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
Noise level: 38 dB
Noise level (economic mode): 36 dB
Number of OSD languages: 10
Multimedia
Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product type: Ultra short throw projector
Cable lock slot type: Kensington
Product colour: Black
Cable lock slot: Yes
Power
AC input voltage: 90 - 264 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 505 W
Power source: AC
Power consumption (typical): 260 W
Packaging data
Package weight: 17.5 kg
Security
Cable lock slot type: Kensington
Cable lock slot: Yes
Supplier features
Harmonized System (HS) code: 85286200
Other features
Remote control type: Wired
Weight & dimensions
Weight: 14 kg
Width: 480 mm
Depth: 376 mm
Height: 144 mm
Package weight: 17.5 kg
Packaging content
Remote control included: Yes
Remote control type: Wired
