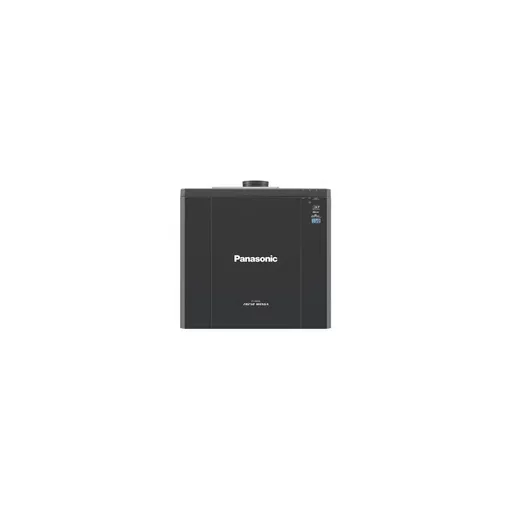

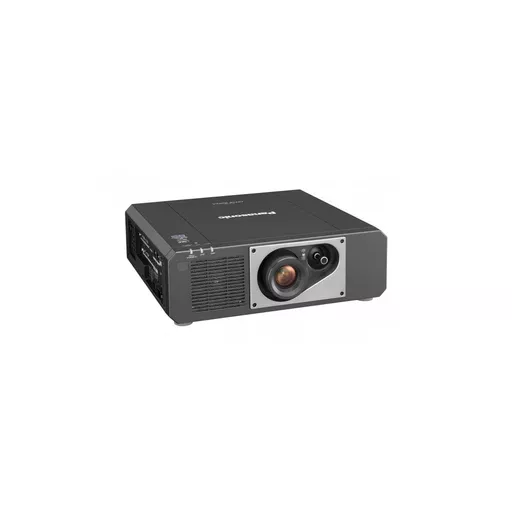

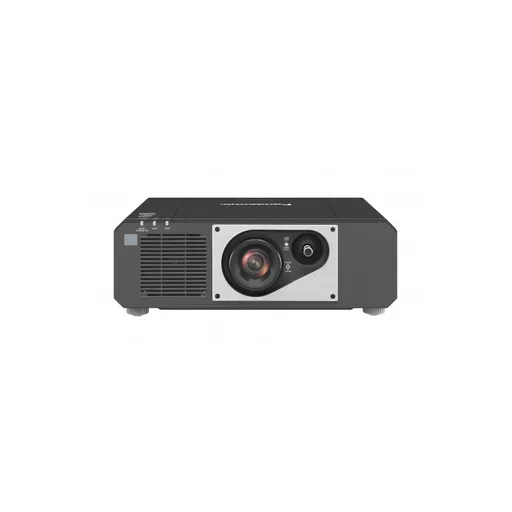

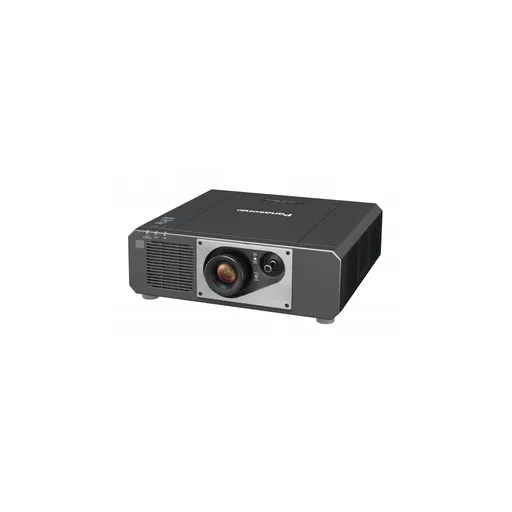

Panasonic PT-FRZ50BEJ Projector
- Laser 1-chip DLP, 5400 lumens (centre), WUXGA
- DLP™ imaging technology, Quartet Color Harmonizer, Rich Color Enhancer, and digitally modulated Dynamic Contrast 2 optimization
- Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
- Flexible 2.0x zoom lens (1.46 – 2.94:1) with V/H Lens-Shift
- Support uncompressed 4K/60p input signals via HDCP 2.2-compliant HDMI® inputs or DIGITAL LINK terminal
DLP™ imaging technology, Quartet Color Harmonizer, Rich Color Enhancer, and digitally modulated Dynamic Contrast 2 optimization coalesce in images of surpassing brightness, color, and clarity regardless of ambient light levels. Flexible 2.0x zoom lens with V/H Lens-Shift joins DIGITAL LINK and CEC-ready HDMI® terminals supporting 4K/60p input signals*2. Separate LAN terminal and USB-DC outlet further streamline installation. Operation is almost inaudible at 27 dB*4.Heat-pipe cooling for the laser modules and heat-sinks for airtight DMD block support filterless design for 20,000 hours of maintenance-free projection. Multi-Laser Drive Engine has failover circuit protection while optional Early Warning software reinforces reliability.
Dynamic Colour for Bright Rooms
Brilliant Colour Reproduction
Quartet Colour Harmonizer is an original colour-wheel mechanism featuring optimized optical design. It modulates light-output according to the image’s colour requirements, achieving wide-gamut reproduction with pure white for greater colour accuracy and depth without sacrificing brightness. Combined with stable SOLID SHINE Laser brightness and the superior uniformity of DLP™ imaging, colours appear richer and brighter without the greenish cast sometimes experienced with alternative projection technologies.
Rich Colour Enhancer
Rich Colour Enhancer includes a Dynamic Mode that prioritizes image brightness, and a Graphic Mode/Standard Mode to suit graphical content. This mode adjusts colour-wheel timing for deeper colour saturation in situations where projection at maximum brightness is not required.
Dynamic Contrast 2 Heightens Contrast Precision
PT-FRZ60 and PT-FRZ50 feature a new Dynamic Contrast 2 setting that enhances 20,000:1 digitally modulated contrast precision to a level approaching our professional models. Dynamic Contrast regulates light-output frame-by-frame or scene-by-scene according to image requirements, achieving accurate contrast when bright and dark scenes frequently interchange. Whites are brighter, blacks richer, and skin-tones more natural even in well-lit environments. The technology also consumes less energy than iris-based projection systems.
Quiet, Versatile, and Easy to Install
Wide-Range 2.0x Zoom Lens with Lens-Shift
To smooth the path to stress-free installation, the projectors equip a 2.0x optical zoom lens that supports a wide range of throw-distances while filling your screen with a large, bright image. V/H Lens-Shift (Vertical: +64 %, -44 % and Horizontal: +34 %, -27 %) locates the image on screen when optimal projector placement isn’t possible, such as in rooms with high ceilings or for angled projection applications. The projectors share the same 2.0x zoom lens and lens-shift adjustment as our PT-RZ570 (and will fit the same mounting bracket), making the PT-FRZ60/FRZ50 a streamlined, cost-effective replacement. V/H Keystone Correction (Vertical: ±40 °, Horizontal: ±20 °), curved-screen correction, and Auto Image Rotation function are included to further enhance installation flexibility.
Supports 4K/60p Signal Input*
Both projectors support uncompressed 4K/60p input signals via HDCP 2.2-compliant HDMI® inputs or DIGITAL LINK terminal. The ability to play Ultra HD video at the projectors’ resolution is invaluable when distributing the same signal to multiple 4K-ready endpoints of differing screen resolutions. An external video converter is not required, saving on installation cost, and you no longer need to reencode video to suit different display resolutions. If preferred, both video and 10Base-T/100Base-TX-compliant control-signals can be assigned to DIGITAL LINK using CAT5e STP cable (or higher), a cost-efficient way to connect over long distances.
* 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.
CEC-ready HDMI Inputs and USB-DC Outlet
HDMI inputs are compatible with control commands from a CEC-compatible component, and allow you to power the projector on/off and commence playback using the source device’s controls. A 5 V/2 A USB-DC outlet will power an HDMI network streaming device so groups can share content to the big screen from their PCs or mobiles. USB power also supports connection of PressIT, Panasonic’s new Wireless Presentation System, for effortless one-touch transmission of content from PC or mobile––no software installation required.
Separate LAN and DIGITAL LINK Terminals
Separate LAN and HDBase-T™-based DIGITAL LINK terminals allow 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron®, AMX, and Extron® applications to be assigned to the dedicated LAN connection, freeing DIGITAL LINK for high-bandwidth video over cable runs of up to 150 m (492 ft).
Quiet 27 dB* Projection Mode
With more lessons and meetings now taking place online, it’s important to own a quiet projector that won’t drown out the discussion. A silent projector also helps your team to focus by limiting distractions. PT-FRZ60/FRZ50 includes a Quiet Mode that enables practically inaudible 27 dB* (PT-FRZ50) or 30 dB* (PT-FRZ60) operation. Enjoy better results from an alert audience, whether they’re in the room or watching online.
* Operating noise is 32 dB in Normal Mode (PT-FRZ50) and 35 dB in Normal Mode (PT-FRZ60).
Proven SOLID SHINE Laser Reliability
SOLID SHINE Laser for Dependably High Brightness
PT-FRZ60 and PT-FRZ50 have durable solid-state laser modules in place of a consumable lamp. The benefits of laser projection are emphatically proven, with no need for consumable parts replacement over years of continuous 24/7 projection and a shallower brightness ramp with superior colour uniformity. Experience better picture quality for longer at a comparably lower cost. Another advantage is the ability to switch the unit on and off from the room breaker any time without risking damage to the light-source.
Failover Redundancy Circuits
Multi-Laser Drive Engine groups laser diodes into discrete modules protected by failover protection circuitry. If a diode in a module fails, only the affected series is bypassed and resulting brightness loss is imperceptible. If a diode fails in other laser projectors, the circuit breaks and all the diodes in the module shut down, resulting in a dramatic loss of brightness. Having multiple light-sources allows projection to continue in the unlikely event of module failure. These protections are invaluable when image display must not be interrupted.
Filterless Cooling and Airtight Optical Block
Implementation of heat-pipe-based cooling with heat-sinks for the DMD block eliminate need for an air filter. These projectors can operate continuously in dusty environments for 20,000 hours without maintenance thanks to a hermetically sealed optical engine that prevents dust intrusion and associated image degradation.
Other Features
Detail Clarity Processor 3
This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural and convincing realism.
Daylight View Basic
Panasonic’s Daylight View Basic technology achieves sharp, easily viewed images by enhancing detail, particularly in dark areas of the image that are normally difficult to see in brightly lit rooms. A built-in sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness according to the surrounding level of illumination.
Single-Cable DIGITAL LINK Connection
DIGITAL LINK transmits uncompressed video, audio, and control commands through a single CAT 5e STP cable for distances of up to 150 m (492 ft). Optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation, reduces cabling and associated costs, and enhances reliability.
Auto Screen Image Rotation
Images are automatically rotated depending on installation orientation—upside down on the ceiling or set on a table—using a built-in angle sensor.
ECO Management System
Push the ECO button on the remote control to set up Eco Management functions, including automatic brightness reduction in dim ambient lighting conditions, and power consumption reduction when no input signal is detected.
Additional Features
- Laser safety guaranteed
- Quick Start / Quick Off function
- 360-degree front and side body-rotation
- Edge-blending and color-matching functions
- Compatible with Art-Net DMX, Crestron Connected™, and PJLink™
- DICOM Simulation Mode
- Digital Fade In / Fade Out function
- Picture-in-Picture capability
- Screen adjustment for specially shaped screens
Specifications
| Projector |
|---|
| Projector native resolution |
WUXGA (1920x1200) |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
1016 - 7620 mm (40 - 300") |
| Contrast ratio (typical) |
20000:1 |
| Zoom capability |
Yes |
| Matrix size |
1.7 cm (0.67") |
| Keystone correction, vertical |
-40 - 40° |
| Keystone correction, horizontal |
-20 - 20° |
| Projection technology |
DLP |
| Projector brightness |
5200 ANSI lumens |
| Zoom type |
Manual |
| Lamps |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
21.5 - 43 mm |
| Aperture range (F-F) |
2 - 3.4 |
| Horizontal lens shift range |
-27 - 34% |
| Vertical lens shift range |
-44 - 64% |
| Throw ratio |
1.46 – 2.94:1 |
| Zoom type |
Manual |
| Video |
|---|
| Full HD |
Yes |
| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 2.0 ports quantity |
1 |
| Composite video in |
1 |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232C |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
2 |
| Storage |
|---|
| Card reader integrated |
No |
| Sound emission |
|---|
| Noise level |
32 dB |
| Technical details |
|---|
| Product colour |
Black |
| HDCP |
Yes |
| Performance |
|---|
| HDCP |
Yes |
| Noise level |
32 dB |
| Features |
|---|
| HDCP |
Yes |
| Noise level |
32 dB |
| Design |
|---|
| Product type |
Large venue projector |
| Housing material |
Plastic |
| Product colour |
Black |
| Placement |
Ceiling, Floor |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
16.3 kg |
| Width |
498 mm |
| Depth |
492 mm |
| Height |
168 mm |
