Viewsonic LS921WU Projector

LS921WU

6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector

• 2nd generation Laser Phosphor technology with a 20,000-hour lifespan
• 6,000 ANSI Lumens to deliver bright images up to 200" in size
• 0.81-0.89 short throw ratio for minimal space consumption
• Wide H/V lens shift, 360° projection & portrait mode for flexible installation
• Dual HDMI 2.0b supporting 4K HDR/HLG content
• Cost-effective compact size and built-in HDBaseT

OVERVIEW

The LS921WU is an advanced 6,000 ANSI Lumens WUXGA short throw installation projector. Adopting 2nd generation Laser Phosphor technology, the LS921WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 200”. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection, and portrait mode combine for incredible flexibility to create a truly immersive experience, especially ideal for blending projection applications in restaurants, gyms, and simulation/experience centres. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG formats supported. Add to that the compact size and built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.

High Brightness

Packed with 6,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.

2nd Generation Laser Phosphor Technology

Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent colour performance, lamp-free design and instant on/off switch.

Reliable Long-Term Performance

Laser technology offers a lifespan of up to 20,000 hours (4 hours per day for more than 13 years) with no degradation in brightness over time so that your installations are consistently vibrant.

No Shadows, No Blinding Lights

With the latest projection technologies from ViewSonic, you'll enjoy all the benefits a short throw projector can offer. When projecting on to a video wall, there are no distracting shadows on the screen image, offering excellent edge blending projection. Plus, a 1.1x optical zoom provides a higher level of flexibility to fit some of the most challenging installation environments.

Larger Screen Size, Lower Cost-Per-Inch

Flexible installation and effortless transportation of the projector allows for an up-to-200” image size, which is much larger and easier to install than multiple commercial displays combined.

Installation Flexibility

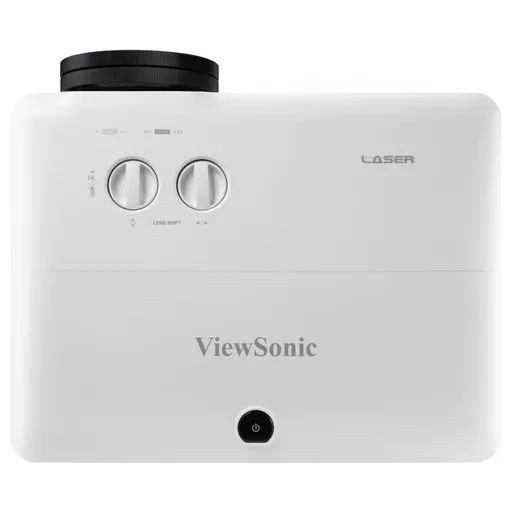

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.

360° Creative Applications

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

90° Portrait Mode

Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.

Dual HDMI 2.0b Supporting 4K/HDR/HLG

It comes with dual HDMI 2.0b / HDCP 2.2 ports, ensuring your access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and showing more picture detail.

Lighter Weight & Compact Size

It is almost half the weight and 35% smaller in size when compared with its predecessor, which reduces the cost of transportation and enhances the ease of installation.

Cost-effectively Receive AV Signal over Long Distance

With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable and is compatible with any certified HDBaseT transmitter.

Non-stop 24/7 Operation

With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

Centralised Control for Management Efficiency

This projector comes equipped with Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

SuperColor™ Technology

ViewSonic’s proprietary SuperColor™ Technology displays a wide colour range, ensuring that users enjoy a true-to-life colour performance in both bright and dark environments without sacrificing image quality.

Sealed Optical Engine with IP5X

The advanced sealed optical engine prevents dust from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.

1. Power Key & IR
2. Front IR
3. Lens
4. Lens Shift Control Knob
5. Zoom/Focus Ring
6. Adjustment Foot
7. LED Indicator
8. Keypad
9. Composite
10. S-Video
11. USB Type A(5V/1.5A)
12. HDMI X 2
13. HDBaseT
14. Computer In
15. Monitor Out
16. LAN
17. Audio In & Out
18. 3D VESA
19. 12V OUT
20. RS-232

Specifications
