SKU: DW284-ST | Brand: VIVITEK

SKU: DW284-ST | Brand: VIVITEK

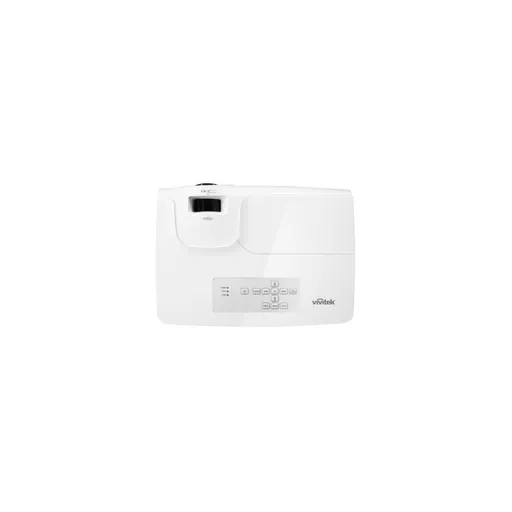

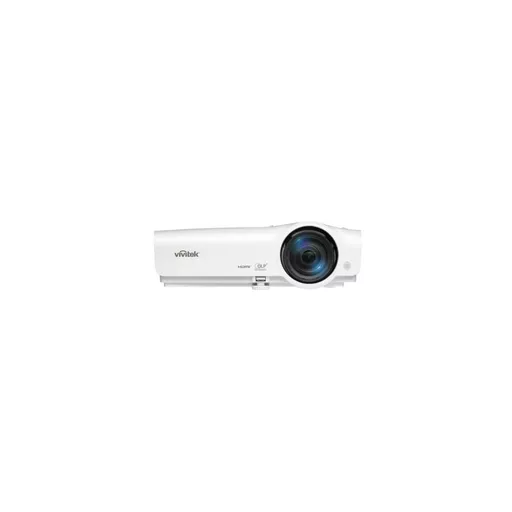

Vivitek DW284-ST Projector

Vivitek DW284-ST Projector | Brightness: 3700 lm | Contrast: 20,000:1 | Resolution: WXGA | Display Type: DLP | Weight: 2.6kg

Read more

Brightness (Lumens) 3700
Resolution WXGA

£415.39  Excl VAT £498.47  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



DW284-ST

Versatile Portable Projector with High Brightness

From meeting room to presentations anywhere on the road

The Vivitek DW284-STdelivers exceptional digital images with a high degree of vibrancy thanks to 3700 lumens of brightness and a contrast ratio of 20,000:1 Featuring native WXGA resolution the DW284-ST is designed for a wide variety of applications. Their compact size at just 2.6 kg allows for easy transportation between different meeting rooms or classrooms.

Key features

  • DLP® technology with BrilliantColor™ for vibrant and rich picture quality
  • 3700 lumens of brightness and 20,000:1 contrast ratio for clear, crisp and bright presentations
  • WXGA (1280 x 800) native resolution and support up to maximum WUXGA (1920x1200) resolution
  • Compact and lightweight at 2.6kg for easy portability
  • A long lamp life up to 10,000 hours for low Total Cost of Ownership (TCO)
  • Audio ready with built-in 2 watt audio speaker, audio-in and audio-out ports

Specifications

Projector
Projector native resolution WXGA (1280x800)
Native aspect ratio 16:10
Screen size compatibility 1270 - 2540 mm (50 - 100")
Projection distance 0.53 - 1.09 m
Contrast ratio (typical) 20000:1
Matrix type DMD
Matrix size 1.65 cm (0.65")
Keystone correction, vertical -40 - 40°
Projection technology DLP
Projector brightness 3600 ANSI lumens
Lamps
Lamps quantity 1 lamp(s)
Lamp power 210 W
Light source type Lamp
Service life of light source 5500 h
Service life of light source (economic mode) 7000 h
Light source
Lamps quantity 1 lamp(s)
Lamp power 210 W
Light source type Lamp
Service life of light source 5500 h
Service life of light source (economic mode) 7000 h
Lens system
Fixed focal length 7.2 mm
Aperture range (F-F) 2.65 - 2.65
Throw ratio 0.49:1
Video
3D Yes
Supported graphics resolutions 1280 x 800 (WXGA),1920 x 1200 (WUXGA)
Audio
Built-in speaker(s) Yes
Number of built-in speakers 1
RMS rated power 2 W
Ports & interfaces
Mobile High-Definition Link (MHL) No
HDMI connector type Full-size
VGA (D-Sub) ports quantity 3
HDMI ports quantity 2
Composite video in 1
S-Video inputs quantity 1
Serial interface type RS-232
PC Audio out Yes
PC Audio in Yes
DVI port No
AC (power) in Yes
Mini-USB 2.0 ports quantity 1
Network
Smart TV No
Ethernet LAN No
Wi-Fi No
Storage
Card reader integrated No
Sound emission
Noise level 32 dB
Noise level (economic mode) 29 dB
Technical details
Product colour White
Lamp power 210 W
Performance
Market positioning Portable
Noise level 32 dB
Noise level (economic mode) 29 dB
Features
Noise level 32 dB
Noise level (economic mode) 29 dB
Multimedia
Built-in speaker(s) Yes
Number of built-in speakers 1
RMS rated power 2 W
Design
Market positioning Portable
Product type Standard throw projector
Product colour White
Display
Built-in display No
Power
AC input voltage 100-240 V
AC input frequency 50/60 Hz
Power source AC
Power consumption (typical) 250 W
Power consumption (standby) 0.5 W
Power consumption (economy mode) 210 W
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 2.6 kg
Width 331 mm
Depth 244 mm
Height 105 mm
Packaging content
Remote control included Yes
Manual Yes
Cables included AC, VGA
Other features
Power consumption (economy mode) 210 W
