SKU: DS-DT60P-02HDI12NO/U | Brand: Hikvision

SKU: DS-DT60P-02HDI12NO/U | Brand: Hikvision

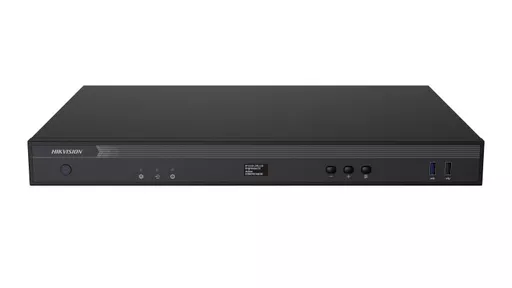

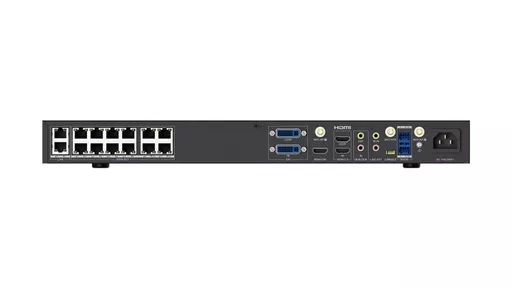

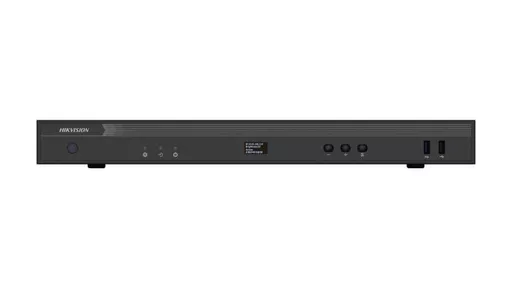

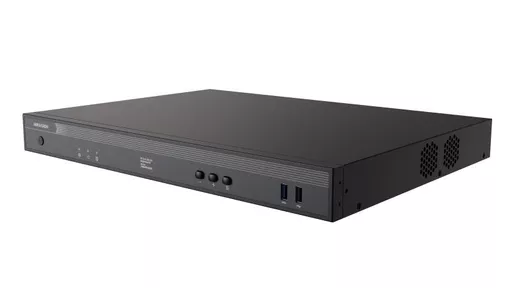

Hikvision DS-DT60P-02HDI12NO/U 12 Ports 3-in-1 LED Controller

Order Before 4pm for Next Working Day Delivery*

£1,685.90  Excl VAT £2,023.08  Inc VAT

Qty

Product Wishlist & Compare Placeholder

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

Public Sector Frameworks

  • Order before 4pm for next working day delivery
  • Please note working days are Monday - Friday
  • If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder



12 Ports 3-in-1 LED Controller

  • Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
  • Adopts the 1 U rackmount chassis and industrial grade chassis system.
  • Provides buttons on the front panel to change brightness and other parameters.
  • Provides indicators on the front panel to indicate the power status, signal access status, and running status.
  • Supports 2 channels of video signal input. The DVI resolution is 1920 × 1200@60 Hz. The HDMI 2.0 resolution is 4096 × 2160@60 Hz.
  • Supports the RGB and YUV 444 image loading output without image quality loss.
  • Supports 12 channels of loading output with the maximum loading capacity of 7.8 MP. The maximum width is 8192 pixels and maximum height is 8192 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
  • Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
  • Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.
  • Supports opening the signal source windows on the display and roaming window.
  • Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.
  • Supports the video wall configuration and window visualization.
  • Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
  • Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.
  • Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
  • Supports custom EDID settings.
  • Supports dual backup of the power supplies and dual backup of LED controller network ports.
  • Supports custom cable alignment without rectangular frame limit.
  • Supports the operation through the client or the LED controller web page.
  • Supports configuring the background.
  • Supports configuring the startup logo.
  • Supports configuring the screen dehumidification.
  • Supports using the remote control to control the screen to display the remote UI menu.
  • Supports adjusting the brightness, contrast, hue, and other parameters of the output image.
  • Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
  • Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
  • Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
  • Supports eye protection mode to protect the vision of the viewer.
  • Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
  • Supports viewing the loading relationship between the device and LED screen.
  • Supports viewing abnormal screen positioning during running.
  • Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
  • Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
  • Supports connecting to the central control device and IoT device through RS-485 port.
  • Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
  • Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
  • Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.
  • Supports HDMI 2.0 and DVI loop output. The maximum HDMI loop output is 4096 × 2160@60 Hz and the maximum DVI loop output is 1920 × 1200@60 Hz.
  • Supports frame rate self-adaption ranging from 25 Hz to 120 Hz for image collection.
  • Supports WonderCast application via PC, mobile devices, screen casting devices, etc.
  • Supports program playback via USB flash drive.
