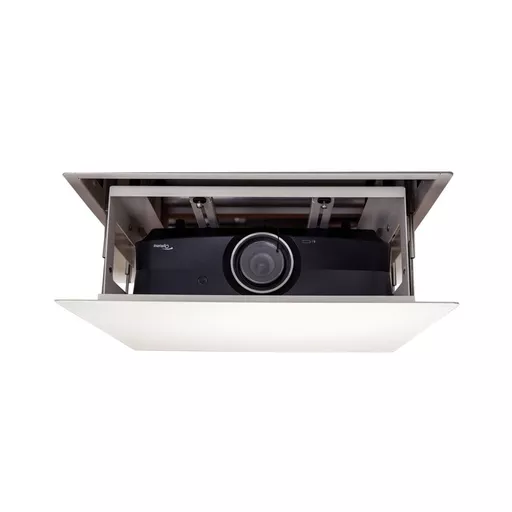

AV Motion - Projector Lift (Projector NOT Included)

Designed by installers for installers, the AV Motion projector lift really is the lift that the industry has been waiting for. Firstly, its light. Full aluminium construction means the lift is easy to handle and if required can be installed by a single technician. It has plenty of room for large projectors, yet it requires the smallest possible ceiling recess depth of only 235mm, so will fit into 9” floor joist ceilings.

The lift comes in two sections.

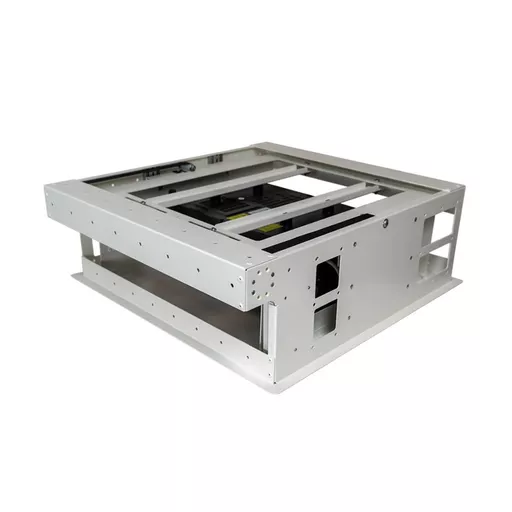

1. The ceiling section, which contains the motor and lifting mechanism. This lightweight cage design mounts into the ceiling and is secured from the sides, straight into the floor joists.

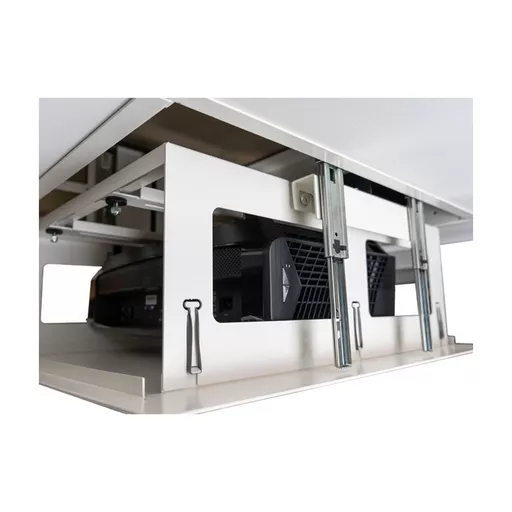

2. The projector section, which has a built-in universal projector mounting system that easily accommodates any projector design in an upside down orientation. The system also easily allows for the fine adjustment of horizontal and vertical tilt, make lining up the project much easier.



Once the ceiling section is fitted, the installer simply lowers the lifting mechanism and “hooks” the projector sections up to it. The rear of the projector is easily accessible, and cables can be connected, picture tested, and projector aligned. When ready, the cover plate is fitted to the underside of the lift with rubber hangers and the lift can be retracted into the ceiling.



In addition to these features the lift has built in 12volt trigger, with a mini jack to connect to the projector and a 12volt out to connect to a screen. So, when the projector is turned on the lift and the screen come down together. An IR remote and manual override is also provided.





  • Lightweight all aluminium
  • Quick and easy to fit
  • Built in electronics
  • Operated via IR and 12v trigger
  • 12v trigger out to screen
  • Only 236mm depth required


Projector section makes fitting projectors easy and simply hooks onto in-ceiling section



To fit in a standard 9” floor joist and to fit projectors up to 510mm in Width x 560mm depth x 210mm in height. Max projector weight 22kg.


Max projector size (mm) H205 x W525 x D560 Inc cables
Max projector weight (kg) 15
Ceiling cut out (mm) 640 x 640
Joist space (left and right) 640mm
Joist space (front to back) 640mm Leave 150mm at front
Min ceiling void 236mm from finished ceiling
Voltage 220-240 AV
Connections 12v trigger in for projector 12v trigger out for screen

AV Motion Projector Lift
