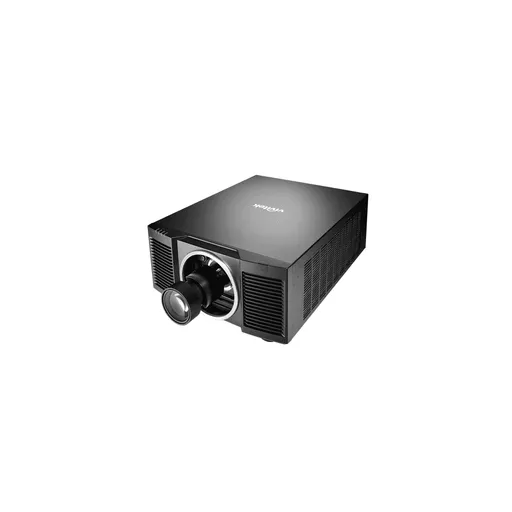

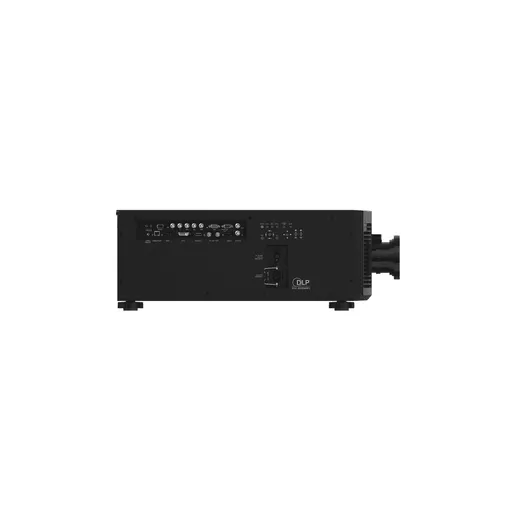

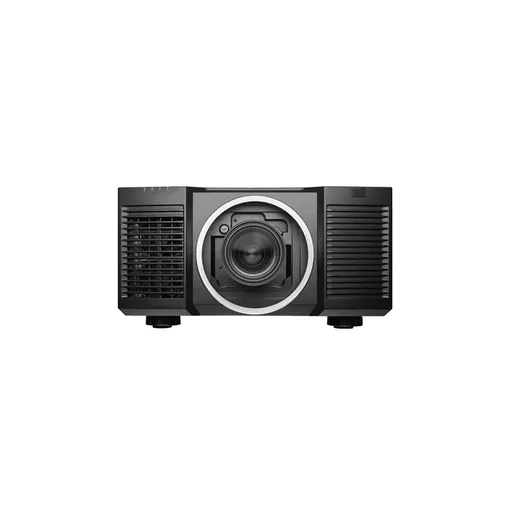

Vivitek DU9800Z Projector

SKU: 813097023377 | Brand: VIVITEK

Vivitek DU9800Z Projector

Brightness (Lumens)	18000
Contrast	10000:1
Resolution	WUXGA
Throw Ratio	Dependant on lens
Display Type	DLP

Order Before 4pm for Next Working Day Delivery*

£14,975.90 Excl VAT £17,971.08 Inc VAT

Qty

Product Wishlist & Compare Placeholder

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

Product Data Sheet

Installation Services

Purchase Orders

Public Sector Frameworks

Order before 4pm for next working day delivery
Please note working days are Monday - Friday
If ordered before 4pm on a Friday, delivery would be Monday

modal placeholder

Purchase Order Modal Placeholder

Description

DU9800Z

Low Maintenance Laser Projector

· WUXGA (1920 x 1200)

· 18000 ANSI Lumens

· C.R.: 10,000:1

· T.R.: 5 optional lenses from 0.84:1 to 7.00:1 throw ratio range

· RJ45: x2: HDBaseTx1, LANx1

· 48 kg

World's First 18,000 Lumens Projector with Single Chip DLP

The DU9800Z Single Chip WUXGA Laser Projector delivers 18,000 ANSI Lumens with its laser light source, the DU9800Z delivers up to 20,000 hours of operation. Additionally, the projector presents many benefits to System Integrators due to its small form factor and light weight that enables simple and swift installation. Vivitek offers a new Constant Brightness feature to help reduce blending maintenance and customise brightness with a built-in light sensor inside the projector monitors the level of light. The DU9800Z is very stable projector and is ideally suited to 24/7 operation with low user intervention.

Key features

· Extraordinarily high brightness at 18,000 ANSI lumens with only one DLP chip system to achieve outstanding performance

· WUXGA resolution and 10,000:1 contrast ratio for clear, crisp and bright projection

· Long lasting laser light source for up to 20,000 hours operations

· Installation flexibility is ensured with 5 optional lenses from 0.84:1 to 7.00:1 throw ratio range

· Designed for heavy duty 24/7 operations with 360° installation angle flexibility

· 3G-SDI & HDBaseT for robustness for long signal transmission

· Built-in multi-screen edge-blending and warping features

· Motorized and wide lens shift range allows easy placement of the projector without distorting the image

· Lens Position Memory to facilitate set up

· New Constant Brightness feature helps reduce blending maintenance with a smart sensor continuously measuring and adjusting the illumination output

Native Resolution	WUXGA (1920 x 1200)
Brightness	18000 ANSI Lumens
Contrast Ratio	10,000:1
Max. Supported Resolution	WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio	16:10
Lamp Life and Type	Lamp free design. Laser light source lasts up to 20,000 hours
Display Type	Single chip DLP® Technology by Texas Instruments
Chip Size	0.96” DMD
Throw Ratio	5 optional lenses from 0.84:1 to 7.00:1 throw ratio range
Image Size (Diagonal)	depending on lens selection
Projection Distance	depending on lens selection
Zoom Ratio	Motorized Zoom & Focus
Lens Shift ( Based on Full Image Height)	Vertical: +/-50%; Horizontal: +/-15%
Offset (Based on Full Image Height)	Motorized Lens Shift
Keystone Correction	Vertical: +/-40°; Horizontal: +/-60°
Video Compatibility	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports	VGA-In (15pin D-Sub), HDMI (2), Display Port, DVI-D, Component (5 BNC) (RGBHV), VGA-Out (15pin D-Sub), RJ45 (x2: HDBaseTx1, LANx1), 12v Trigger (x2), RS-232, 3D-Sync (x2: In and Out), 3G-SDI (x2: In and Out), Remote Jack(wire remote)
Dimensions (W x D x H)	681 x 530 x 248 mm
Weight	48 kg
Noise Level	43dB (Normal Mode)
Power	Supply: AC 100-240V, 50/60Hz Consumption: 1800W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video)	Yes
Remote Control P/N	5041848301
Standard Accessories	HDMI Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories	Remote Control P/N: 5041848301
Warranty	Large Venue Laser Phosphor Warranty: 5 Year projector / 3 years or 10.000h on the Laser Phosphor illumination source.(Whichever comes first)
UPC Code	DU9800Z-BK: 813097023377
